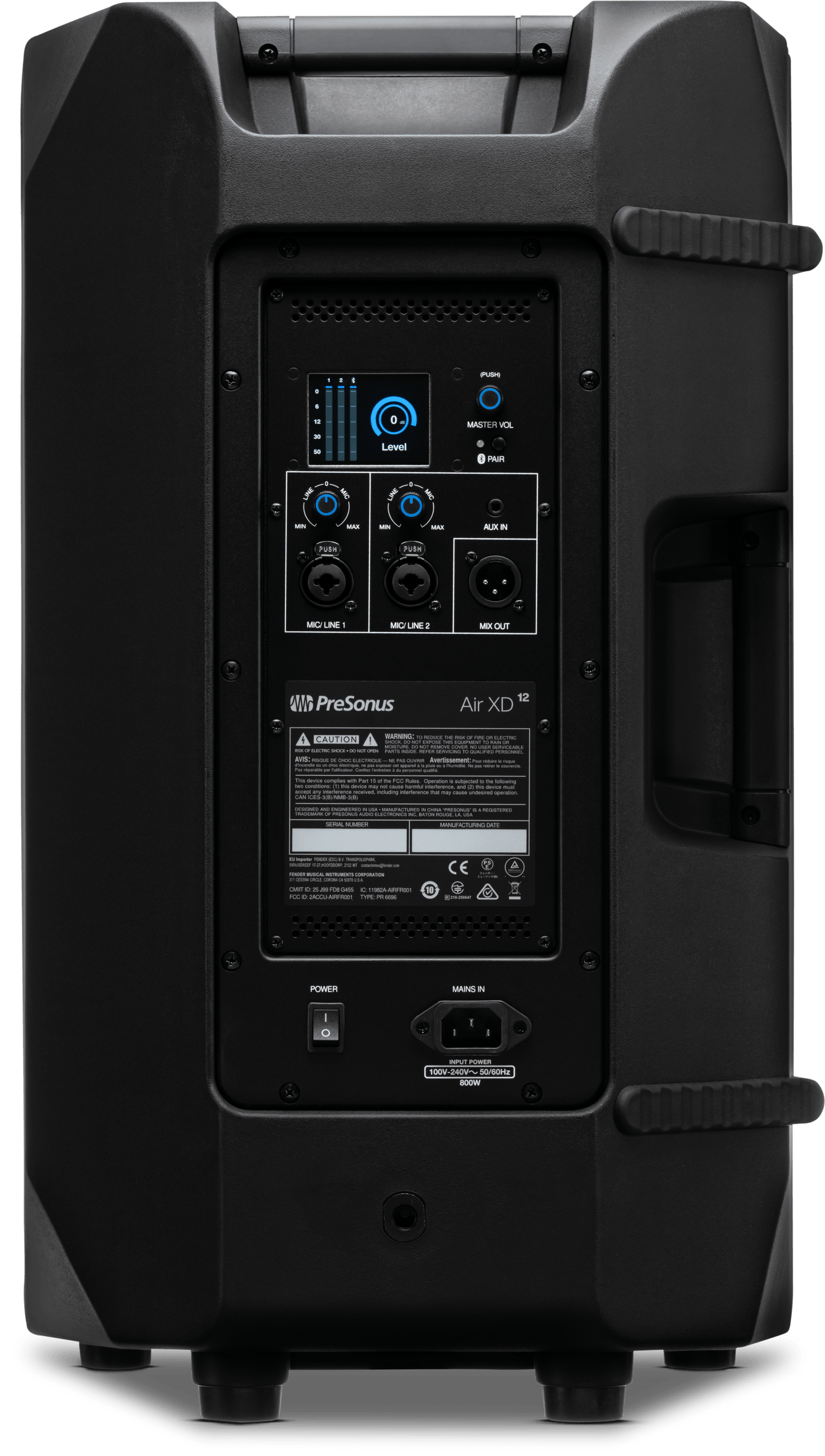

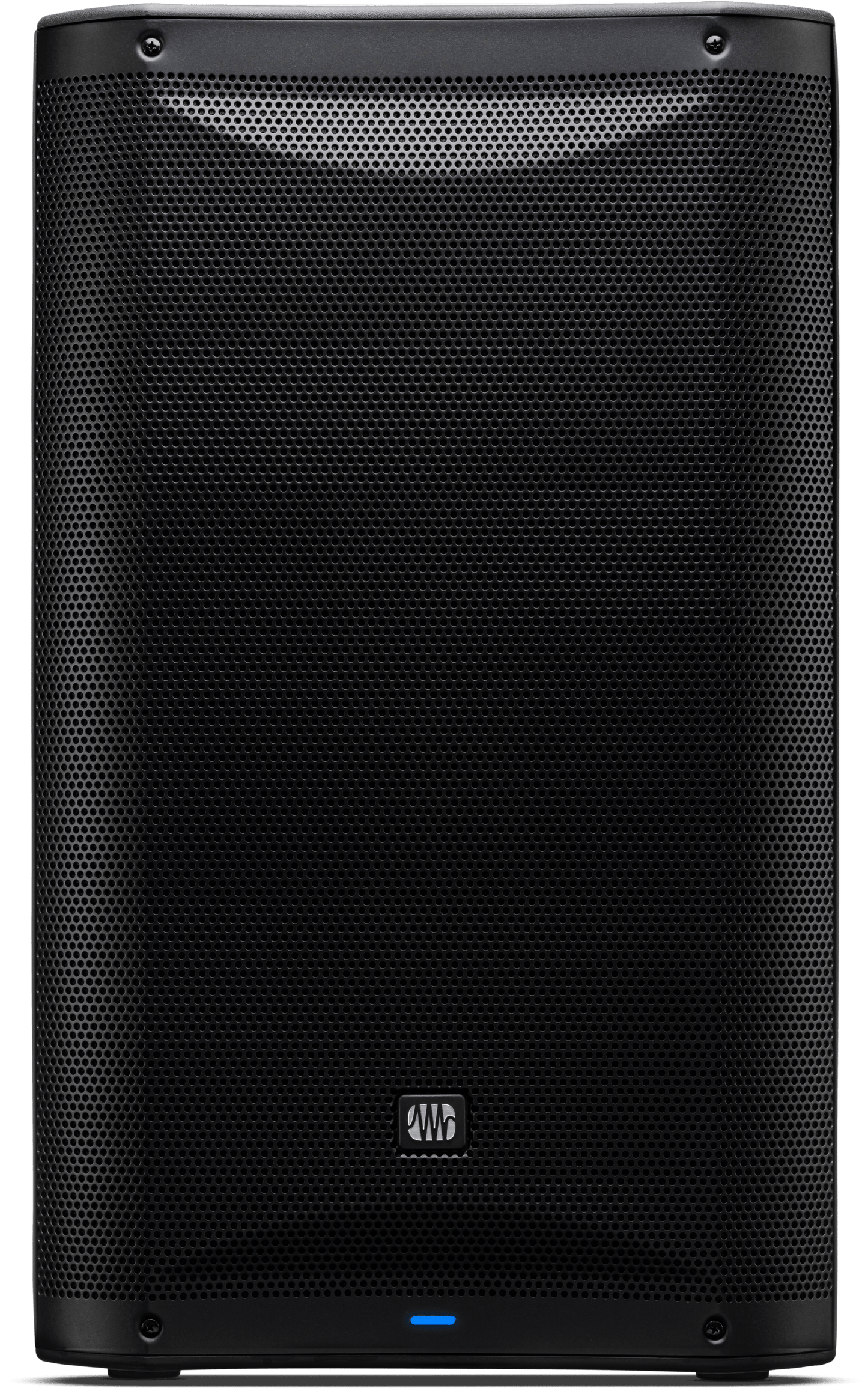

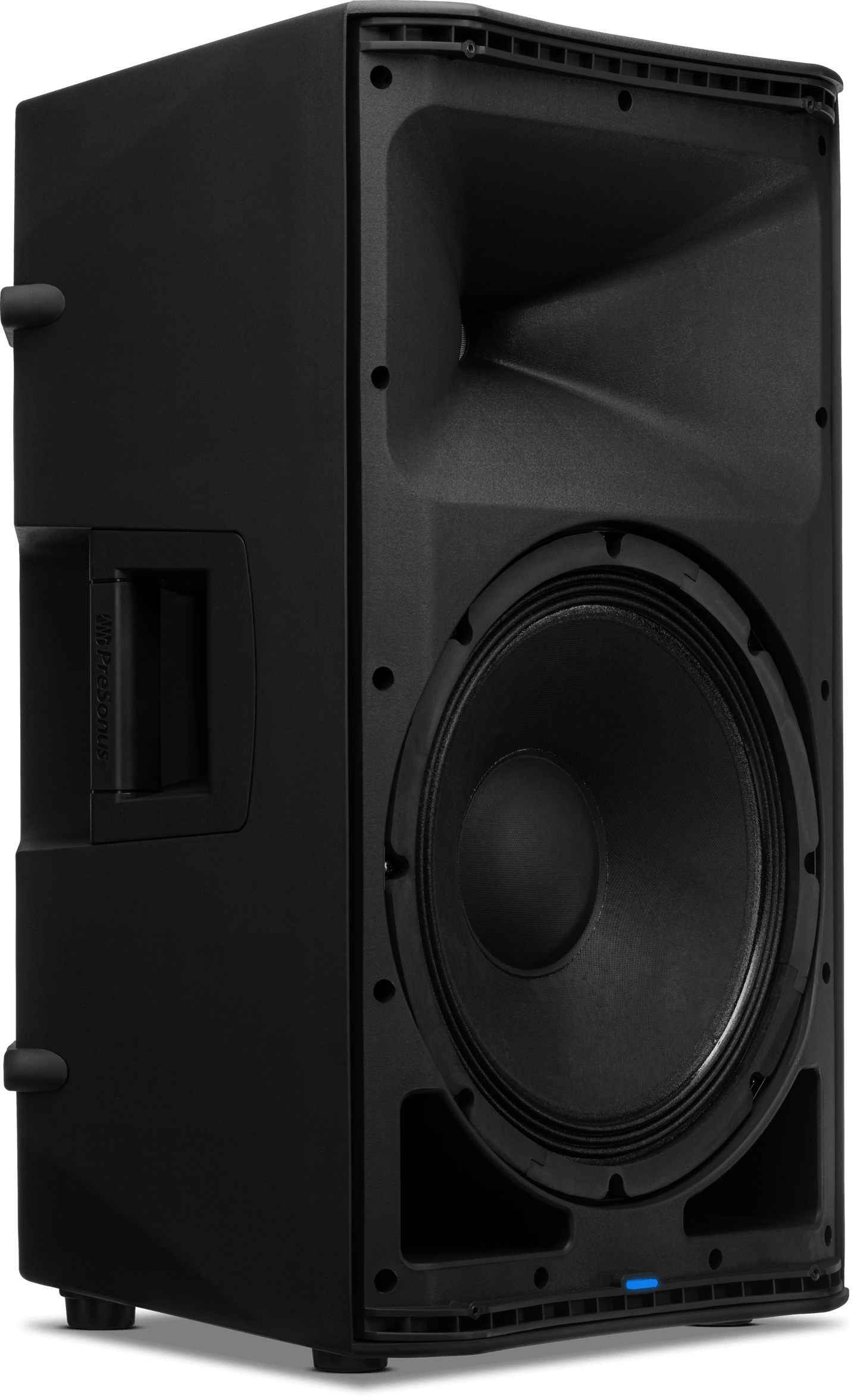

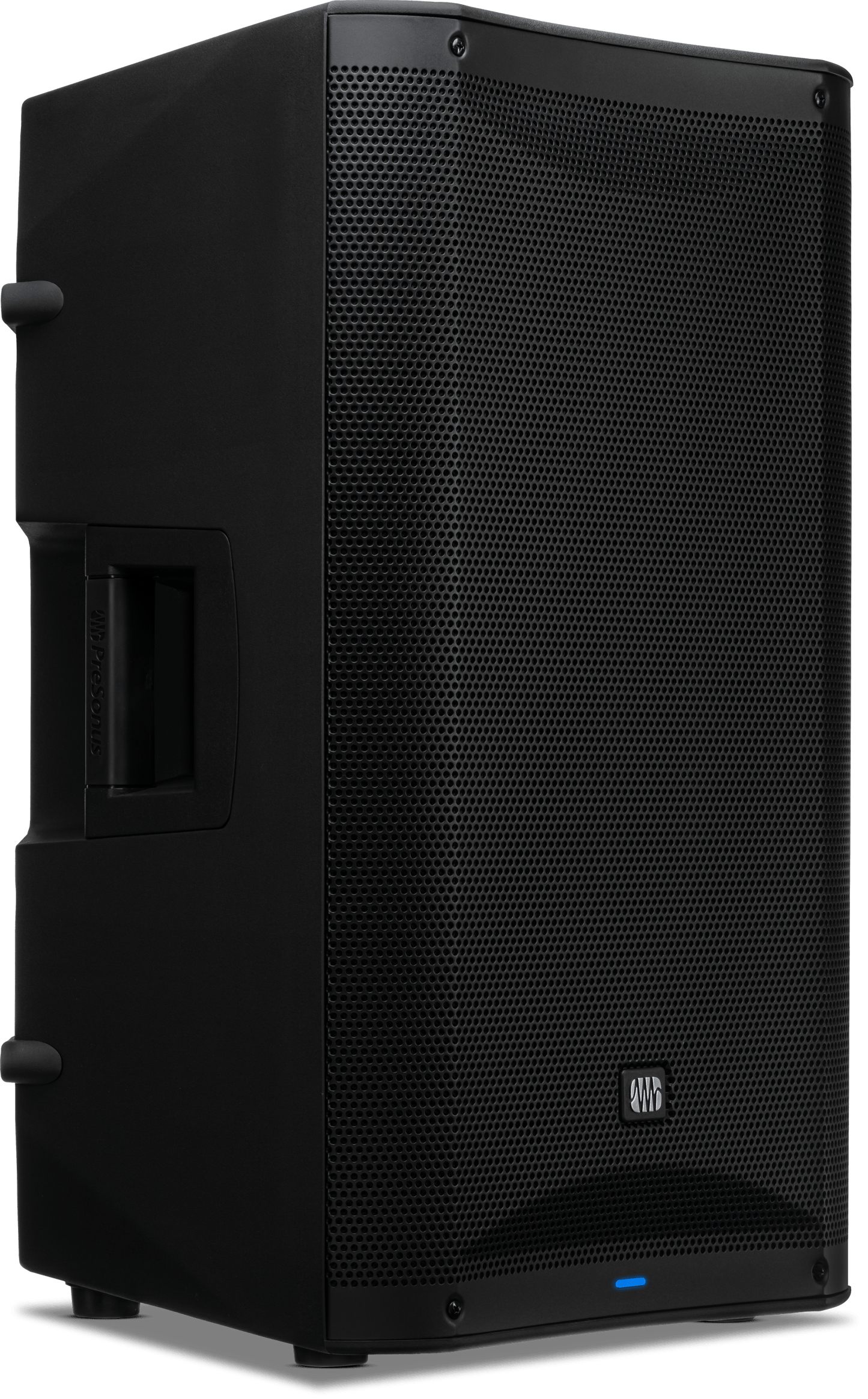

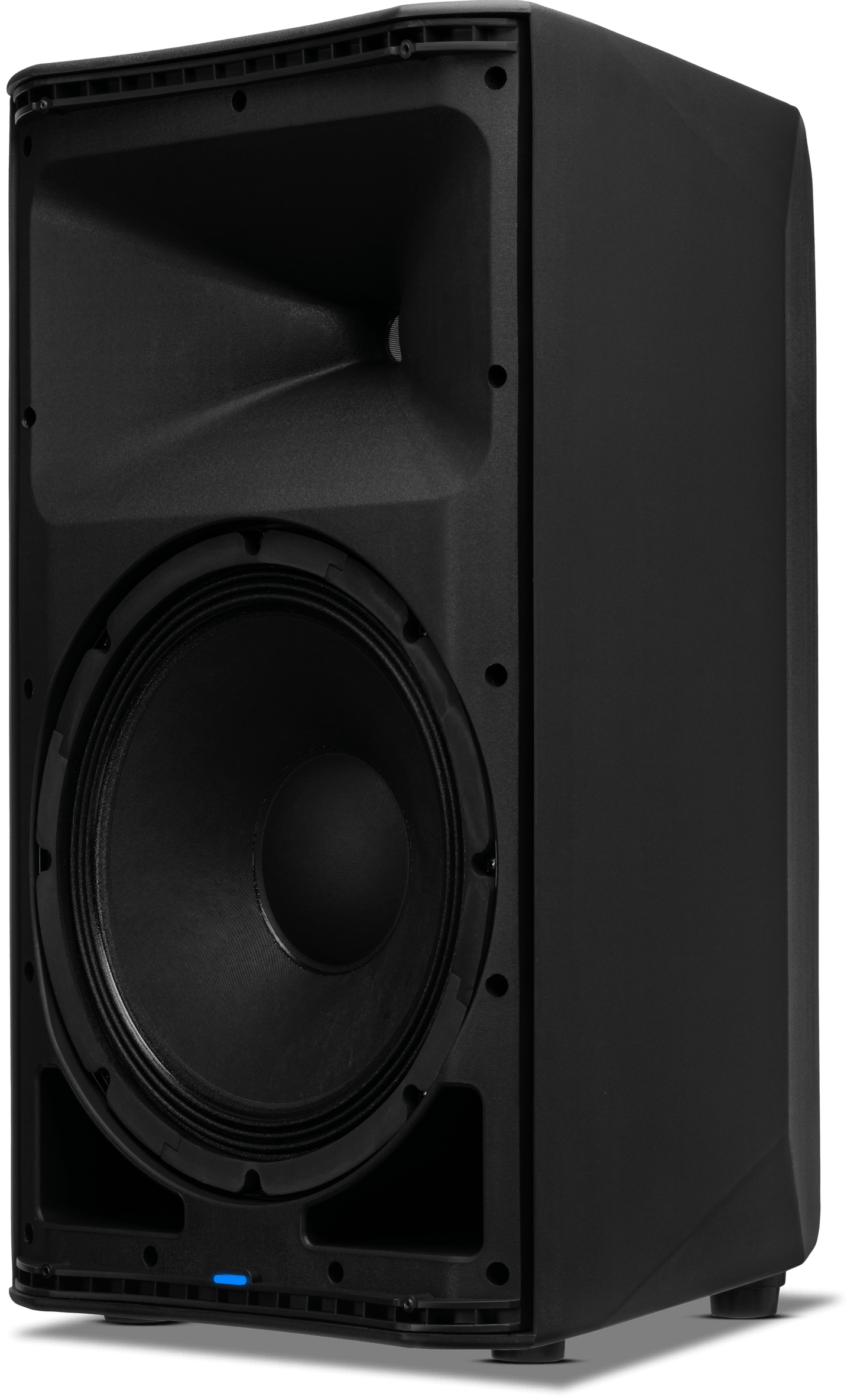

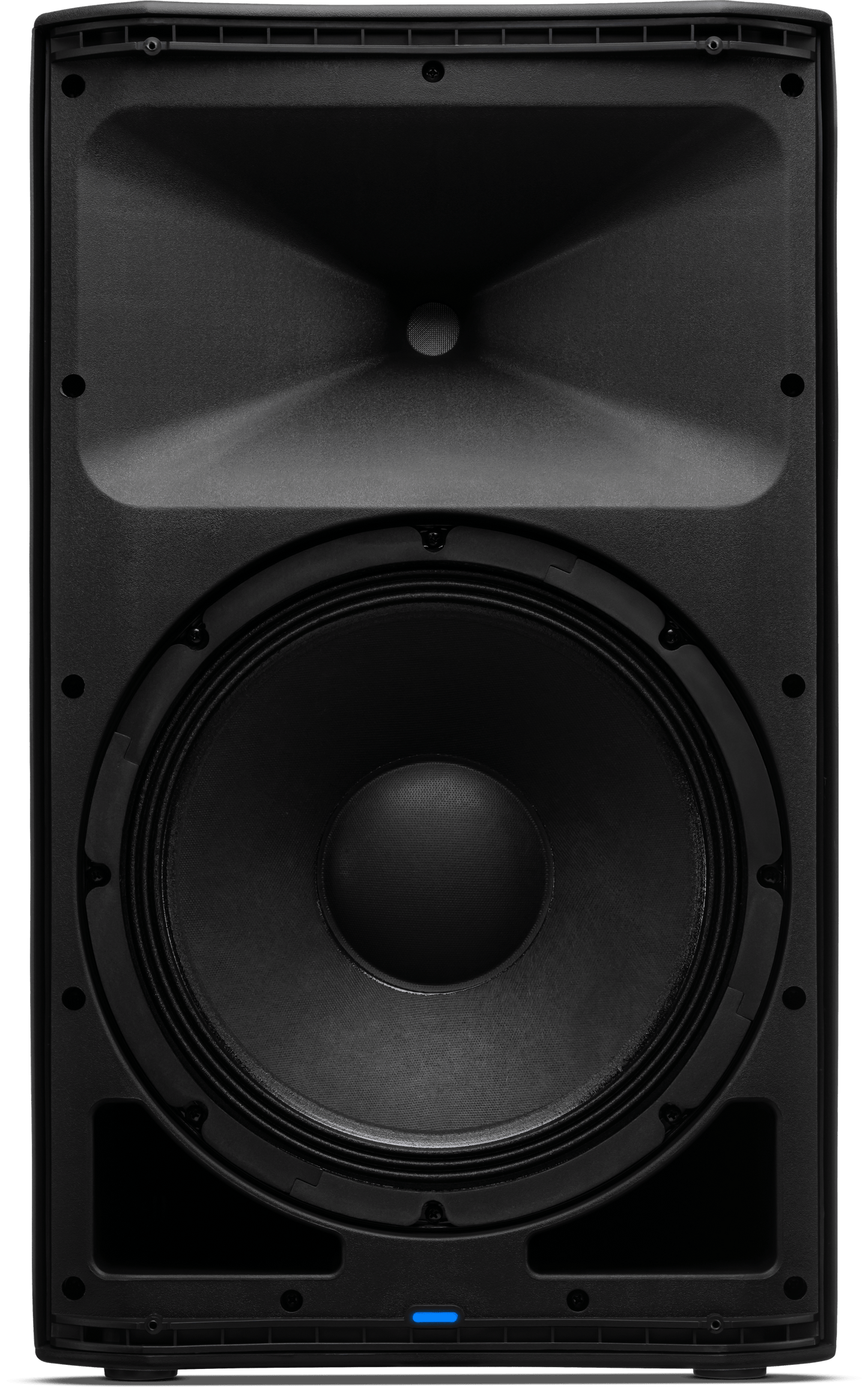

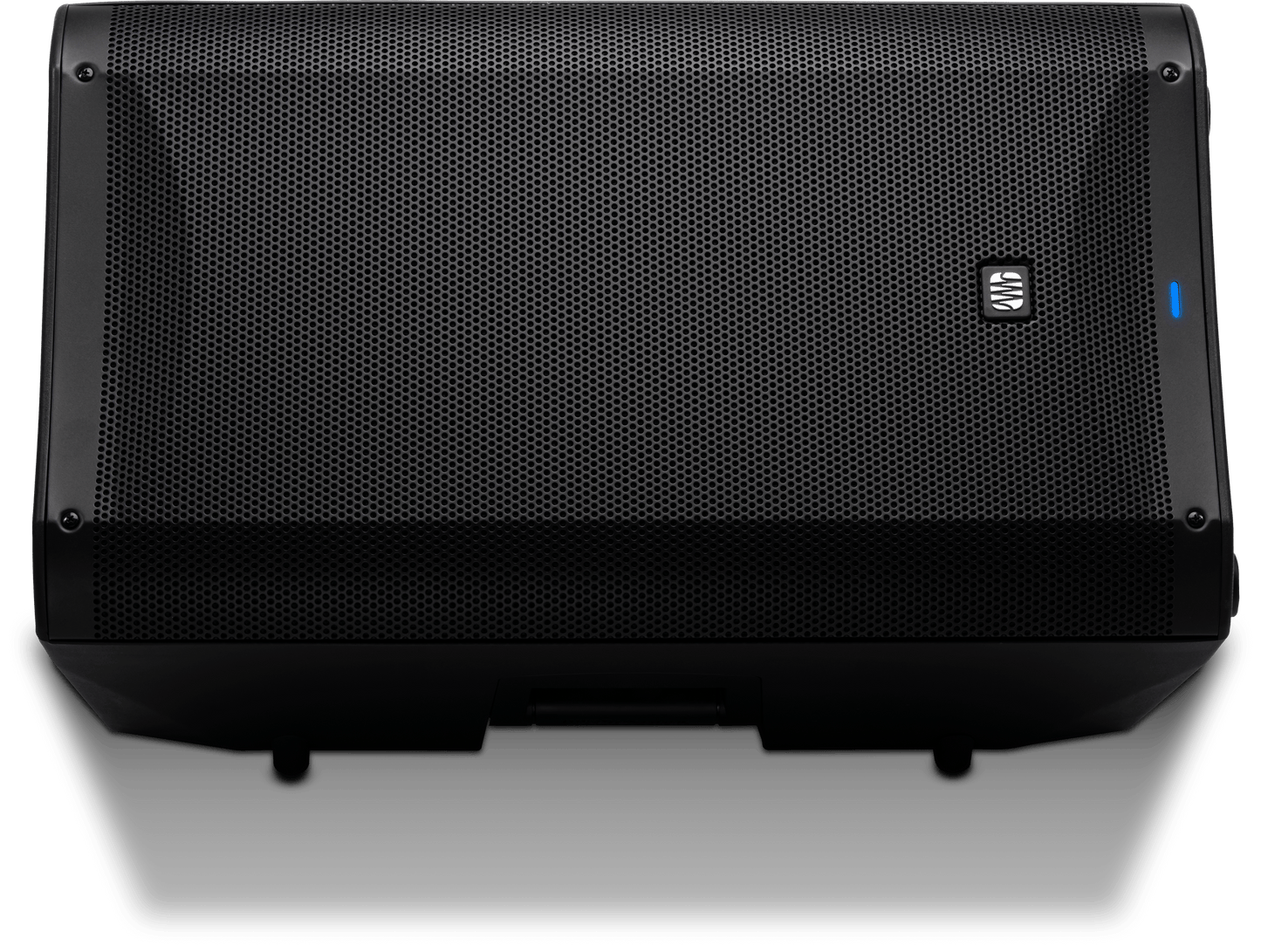

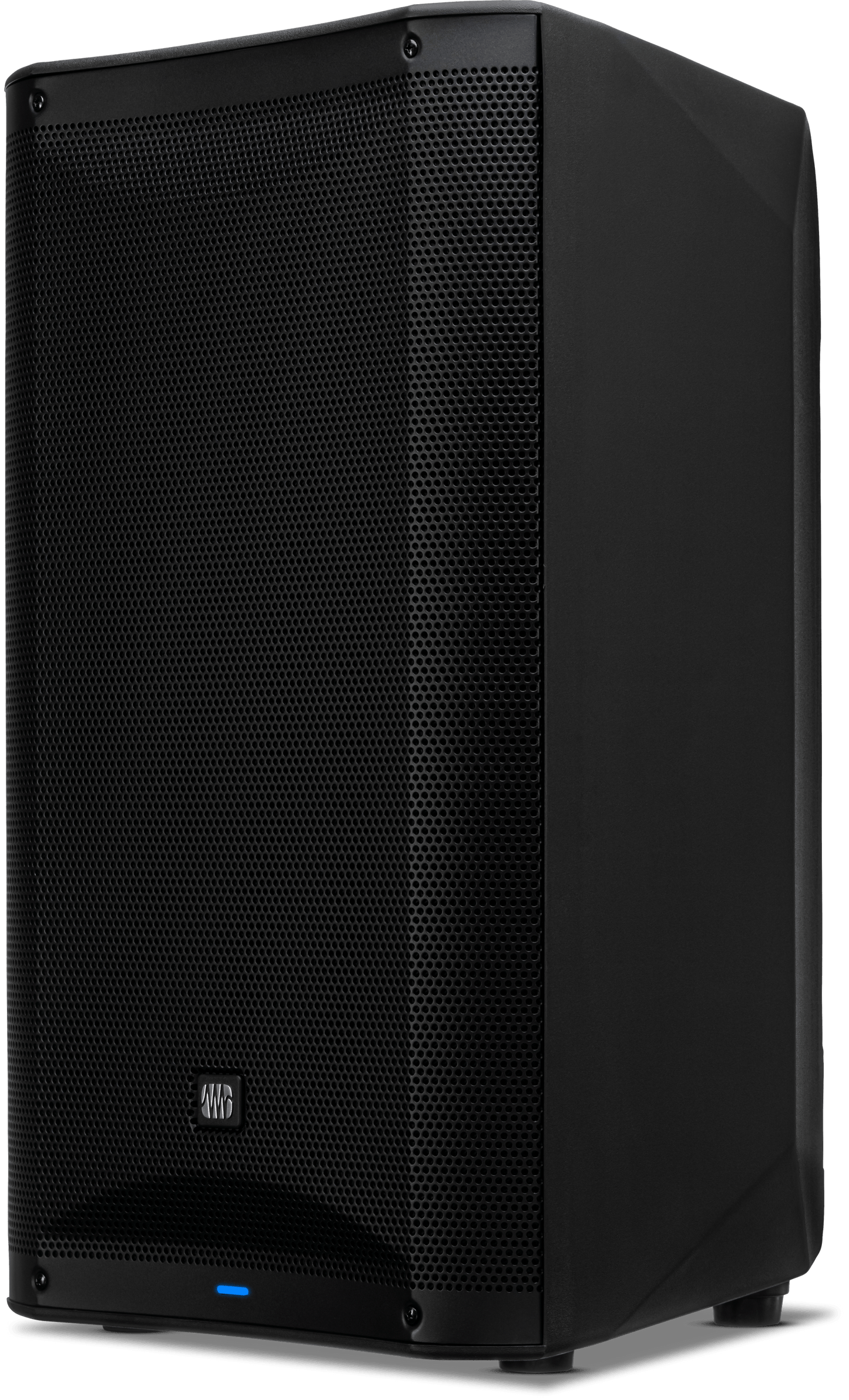

AIR XD 12 2-way 1 x 12" Active Extended Definition Loudspeaker
AIR XD 12 2-way 1 x 12" Active Extended Definition Loudspeaker
Couldn't load pickup availability
Overview
Powered by 1,500W of efficient Class D amplification, the AIR XD 12 can reach up to 132 dB SPL while maintaining clarity and headroom. Onboard DSP presets, ±10 dB EQ, and performance tuning modes allow quick adjustment for speech, music playback, FOH, or monitor use. A full-color 2.6” LCD provides intuitive metering, system control, and rapid access to all settings.
Built-in Bluetooth with TWS Bridge Mode enables effortless wireless stereo pairing, making it ideal for mobile DJs, corporate events, and fast setups. The integrated mixer includes combo mic/line and aux inputs, allowing seamless connectivity and versatile signal routing. Rugged enclosures with ergonomic handles and multiple mounting options make the AIR XD 12 as portable as it is powerful, whether flown, pole-mounted, ground-stacked, or used as a floor monitor.
Overview
Features
- Custom 12-inch low-frequency driver with enlarged 2.56” voice coil for extended low-end response down to 40 Hz
- 1.35” High-frequency compression driver with PEEK diaphragm for clear, detailed, and durable highs
- 1,500W Class D bi-amplification for clean, efficient power and up to 132 dB SPL
- Onboard DSP with performance presets, ±10 dB EQ, and tuning modes for speech, music, FOH, or monitor use
- Full-color 2.6" LCD for fast, intuitive metering and system control
- Built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing
- Integrated 3-channel mixer with combo mic/line and aux inputs for flexible connectivity
- 90˚ horizontal dispersion and 60˚ vertical dispersion
- Frequency Response: 51 Hz to 20 kHz (-3 dB), 48 Hz to 20 kHz (-10 dB)
- Rugged, portable enclosure with ergonomic handles and multiple mounting options: flown, pole-mounted, ground-stacked, or floor wedge
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Scalable Performance for Any Setup
With 10-, 12-, and 15-inch full-range models and 15- or 18-inch subs, AIR XD speakers deliver massive output and precise, detailed sound across the full frequency spectrum. Class D amplification provides high efficiency, maximum headroom, and clean power handling, making them perfect for everything from intimate gigs to large-scale events.
Precision DSP for Perfect Sound
Shape your system with intuitive DSP presets for FOH, monitoring, speech, music, or enhanced warmth. Subwoofer tuning includes crossover control, array presets, alignment delay, and more.
Flexible Connectivity Built In
Each speaker includes an onboard mixer with combo mic/line inputs, aux support, and built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing—no extra gear or cables required.
Built to Move. Ready to Install
Rugged enclosures, full-color displays, versatile mounting options, and ergonomic hardware make AIR XD perfect for the stage, the road, or permanent installs.
PreSonus® Six-Year Warranty
When you choose AIR XD-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Specs
Electronics
Auxiliary Input
1/8 in (3.5 mm) Stereo
Bluetooth
Bluetooth® V5.0
Channels
Three
Connectivity
Bluetooth
Inputs
Four - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8” TRS Stereo, Bluetooth Stereo)
Line Out
One - 1 x XLR Mix Out
Power Consumption
3.3A (230V-50 Hz), 6.6A (120V)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
AIR XD 12 2-Way Active Sound-Reinforcement Loudspeaker, UK
Series
AIR
Hardware
Audio Controls
Gain, Volume, Hi/Lo EQ
Cabinet Material
H-PP Molded
Cooling
Passive radiator
Grille Material
1.2 mm Steel
HF Powere
468W
HF Transducers
1.35” Compression
Handle
1 Top, 1 Side
LF Power
1060W
LF Transducers
12” (2.56” Voice Coil)
Pole Socket
Dual Position (0˚, 7.5˚)
Inputs
Line Input Connection Type
XLR/TRS Mic/Line Combo
Line Inputs Impedance
30K ohm
Line Inputs Maximum Level
+14dBu
Microphone Preamp Input Impedance
30K ohm
Measurements
Product Depth
13.8" (35.1 cm)
Product Height
24.4" (61.9 cm)
Product Height/Length
24.4" (61.9 cm)
Product Weight
43.3 lbs (19.5 kg)
Product Width
14.2" (36.0 cm)
Miscellaneous
DSP Features
Speaker modes, Location, Bass, Treble
Power Cable
IEC
Protections
Output limiter
Suspension
M10 Suspension Points, Flypoints: 2 Top, 1 Back
Output
Line Outputs Connection Type
XLR Male, Balanced
Performance
Peak SPL
132 dB
Total Power Output
1500 Watts
Speakers
Coverage Pattern
90 degree (H) x 60 degree (V)
Crossover Frequency
1.6 kHz
Speaker Type
Active 2-Way
Total Impedance
NA
Specs
Electronics
Auxiliary Input
1/8 in (3.5 mm) Stereo
Bluetooth
Bluetooth® V5.0
Channels
Three
Connectivity
Bluetooth
Inputs
Four - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8” TRS Stereo, Bluetooth Stereo)
Line Out
One - 1 x XLR Mix Out
Power Consumption
3.3A (230V-50 Hz), 6.6A (120V)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
AIR XD 12 2-Way Active Sound-Reinforcement Loudspeaker, EU
Series
AIR
Hardware
Audio Controls
Gain, Volume, Hi/Lo EQ
Cabinet Material
H-PP Molded
Cooling
Passive radiator
Grille Material
1.2 mm Steel
HF Powere
468W
HF Transducers
1.35” Compression
Handle
1 Top, 1 Side
LF Power
1060W
LF Transducers
12” (2.56” Voice Coil)
Pole Socket
Dual Position (0˚, 7.5˚)
Inputs
Line Input Connection Type
XLR/TRS Mic/Line Combo
Line Inputs Impedance
30K ohm
Line Inputs Maximum Level
+14dBu
Microphone Preamp Input Impedance
30K ohm
Measurements
Product Depth
13.8" (35.1 cm)
Product Height
24.4" (61.9 cm)
Product Height/Length
24.4" (61.9 cm)
Product Weight
43.3 lbs (19.5 kg)
Product Width
14.2" (36.0 cm)
Miscellaneous
DSP Features
Speaker modes, Location, Bass, Treble
Power Cable
IEC
Protections
Output limiter
Suspension
M10 Suspension Points, Flypoints: 2 Top, 1 Back
Output
Line Outputs Connection Type
XLR Male, Balanced
Performance
Peak SPL
132 dB
Total Power Output
1500 Watts
Speakers
Coverage Pattern
90 degree (H) x 60 degree (V)
Crossover Frequency
1.6 kHz
Speaker Type
Active 2-Way
Total Impedance
NA
