CDL10P Constant Directivity Sound Reinforcement Loudspeaker
CDL10P Constant Directivity Sound Reinforcement Loudspeaker
Regular price
£779.00
Regular price
£779.00
Sale price
£779.00
Unit price
per
Our constant directivity sound reinforcement loudspeaker with hybrid point-source/line-array design.
Couldn't load pickup availability
Overview
The CDL12 loudspeakers impressed ears around the world when we introduced them, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant-directivity performance is available in the new CDL10P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design.
Like the CDL12P, CDL10P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.
The CDL10P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL10P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
Overview
Features
- Continuous-directivity constant curve array with six 2-inch cone drivers disperses sound 120° horizontally
- 15˚ vertical directivity can be extended from 30˚ up to 90˚ with additional arrayable CDL10P's
- 10-inch, long-throw LF transducer with 2.5-inch voice coil
- Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
- 500 x 500 watts Class D power for high SPLs and lightning-fast transient response
- Onboard DSP: 90 High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CDL18s, ULT18, or AIR18s)

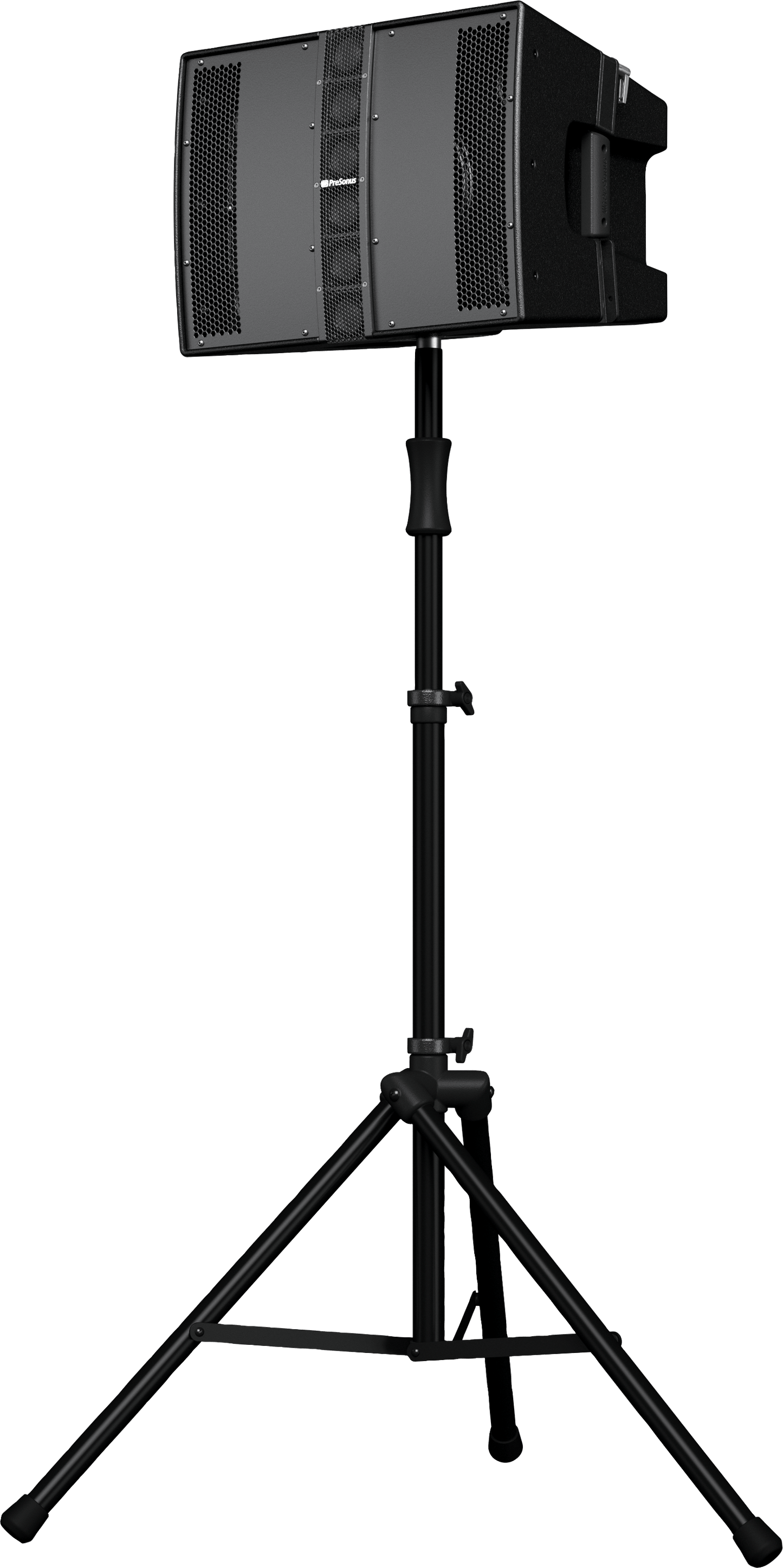

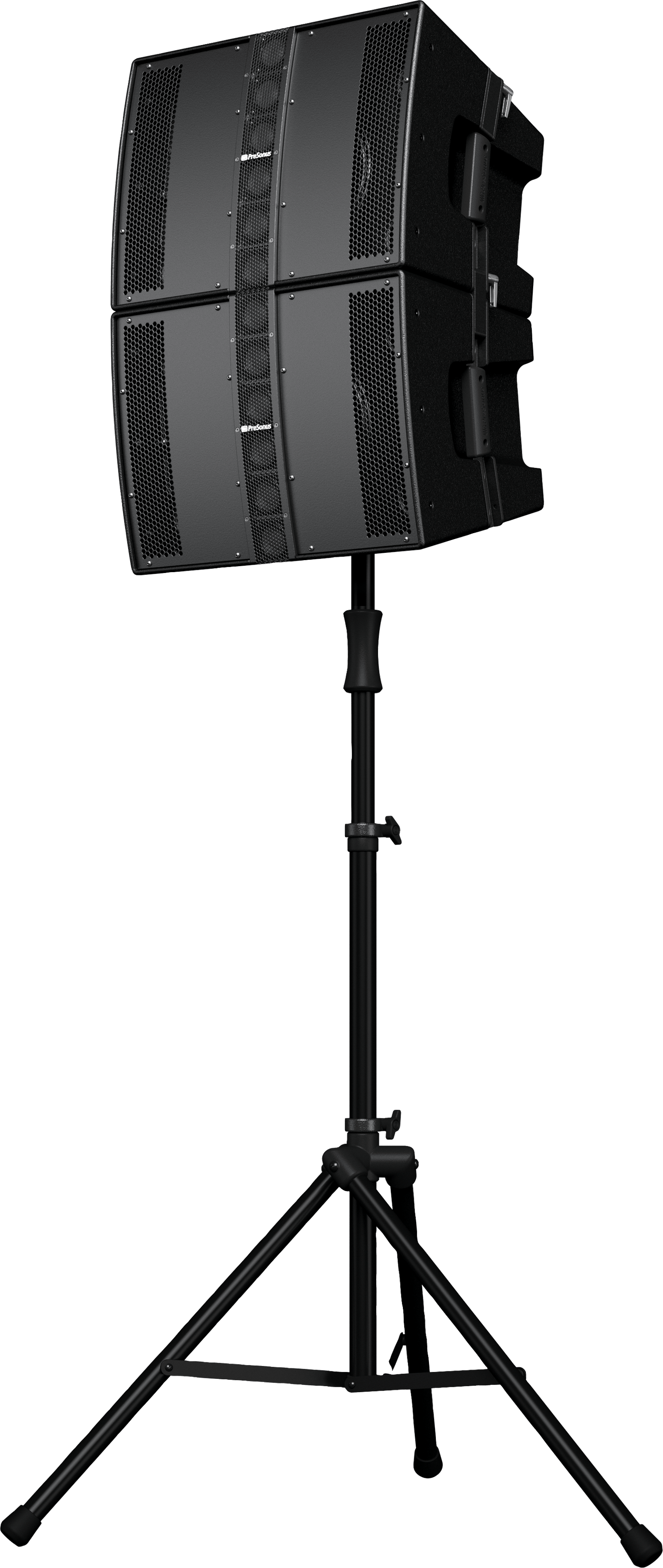

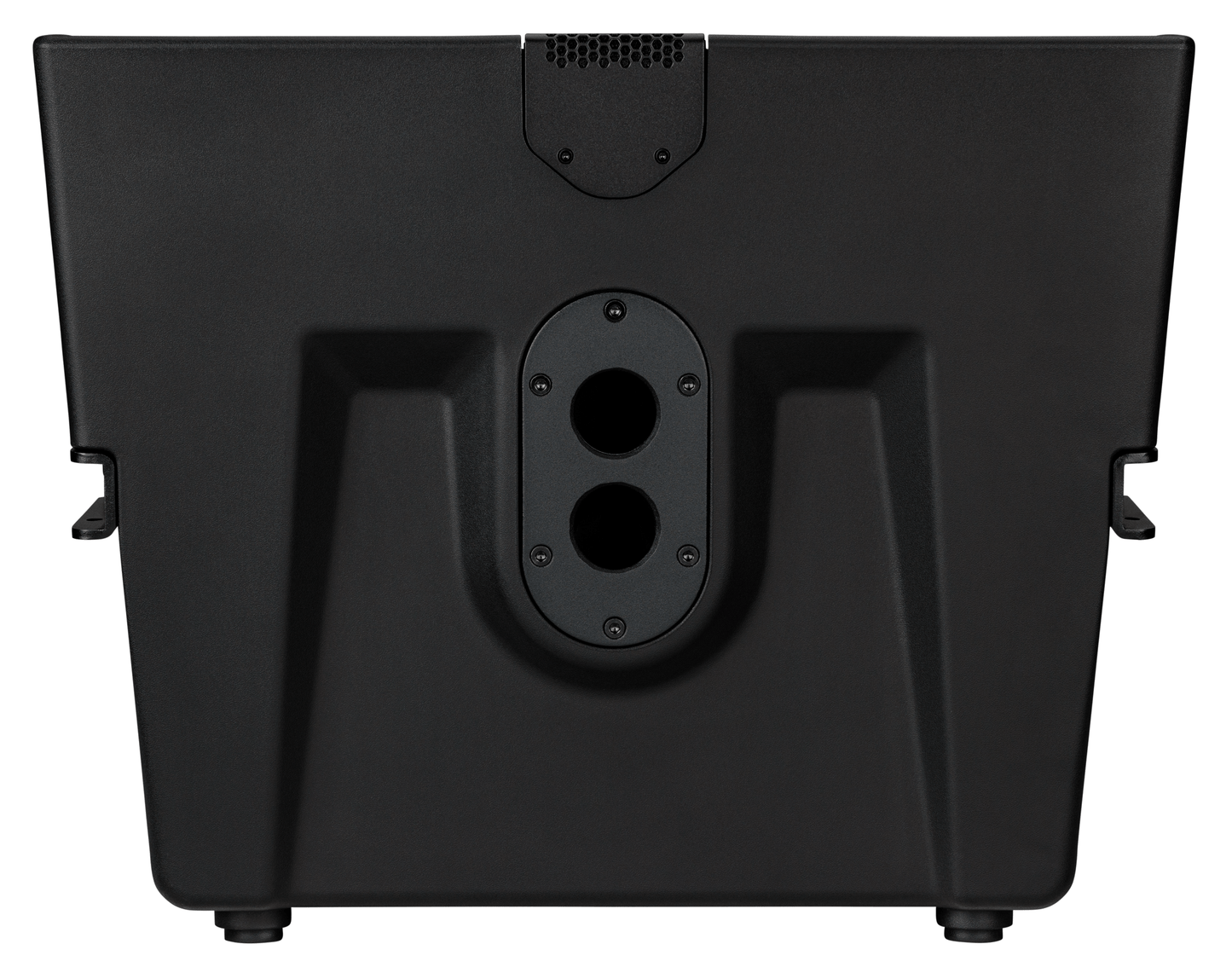

- 35 mm pole socket with 7.5˚ downward tilt for use with up to two CDL10P on a tripod or atop PreSonus® CDL Sub18, CDL18s or ULT18 subwoofer

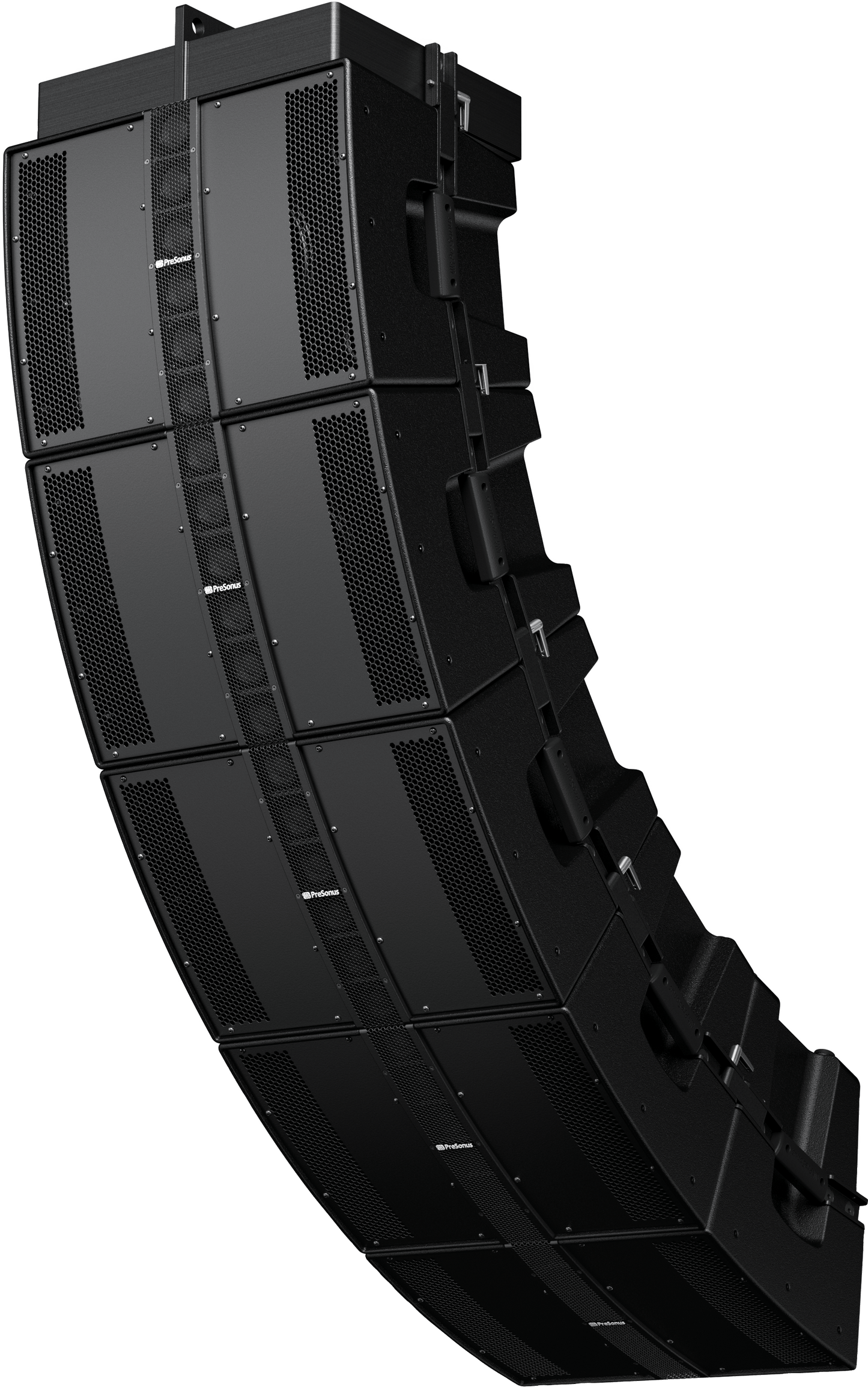

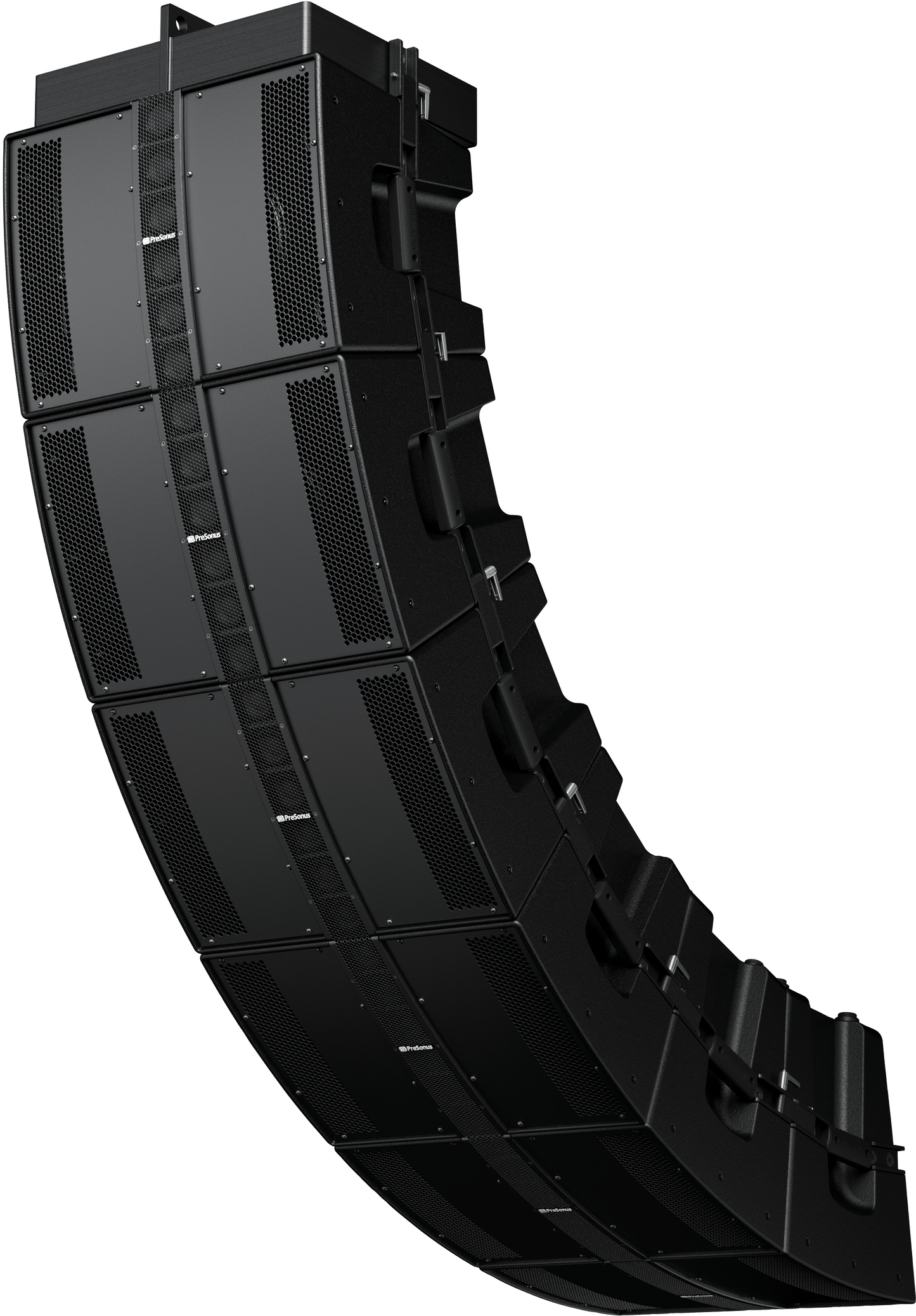

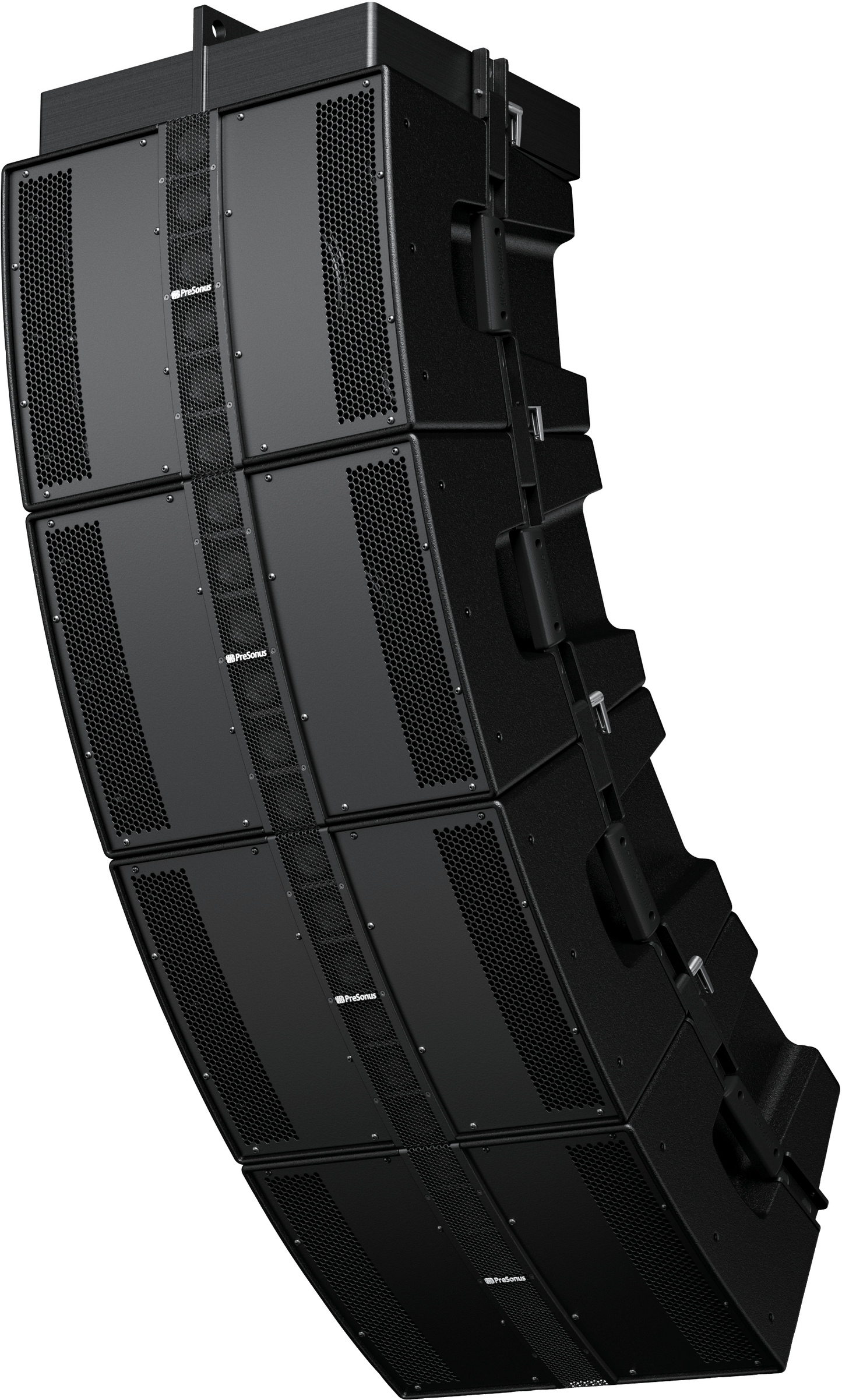

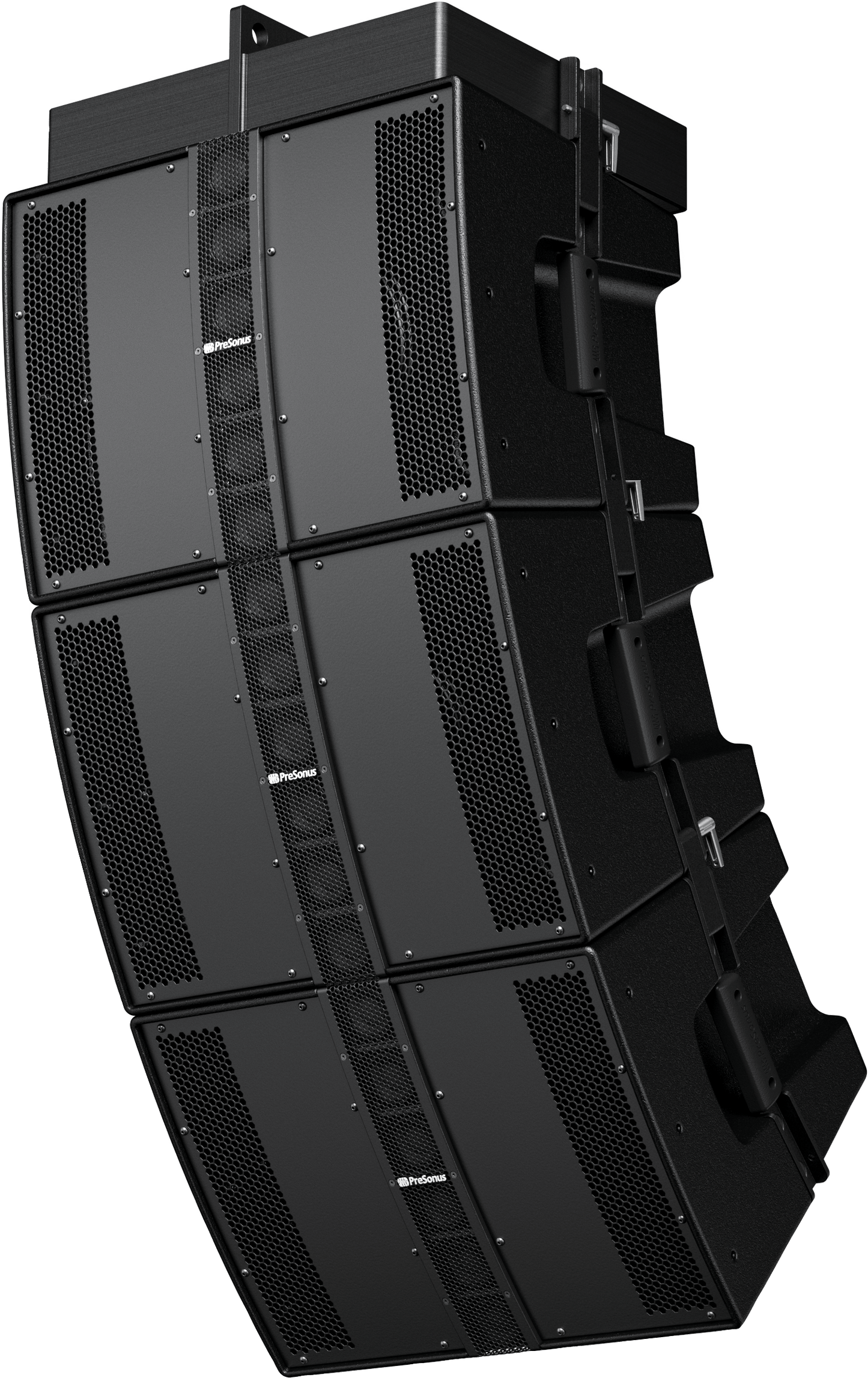

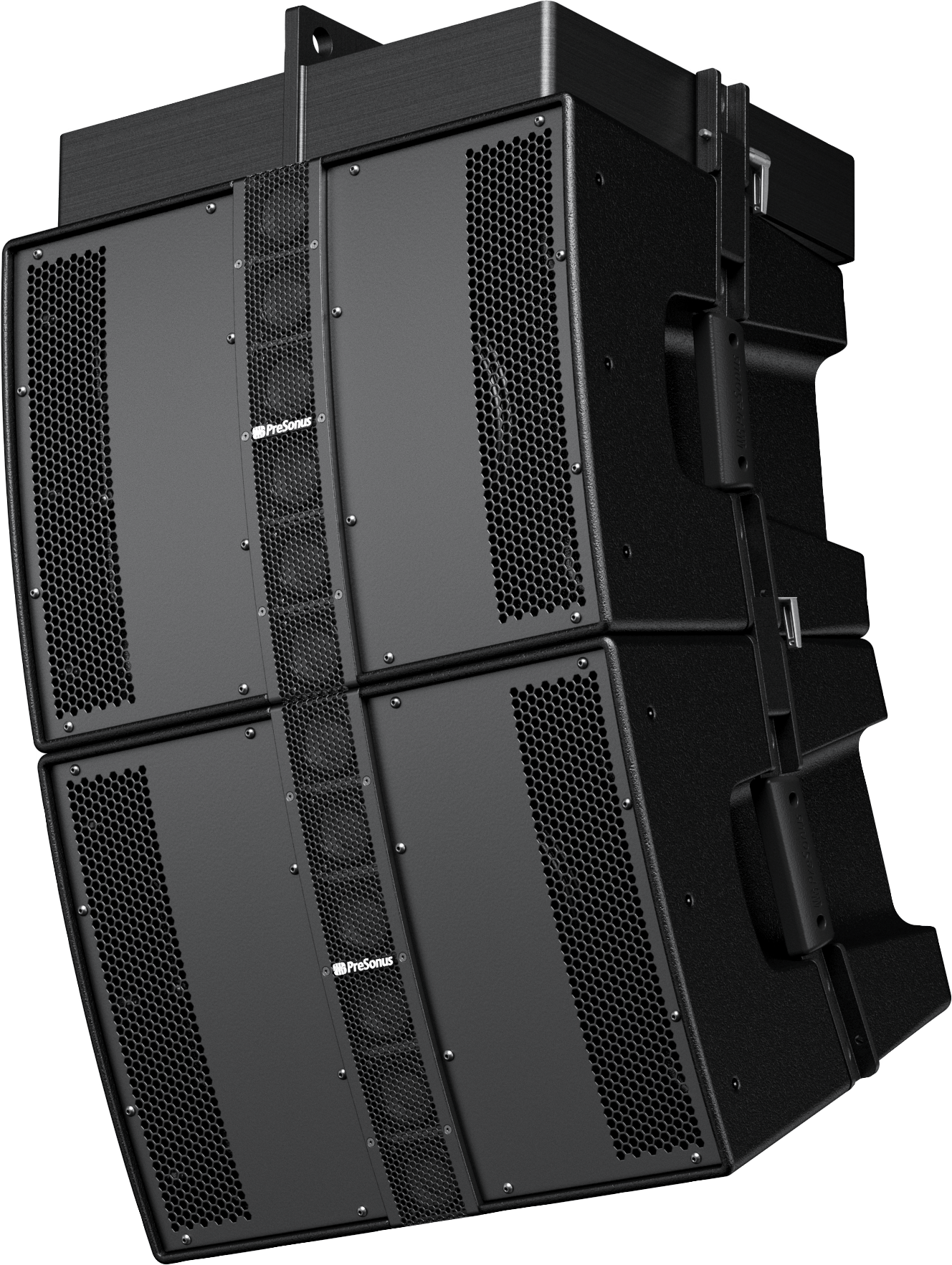

- Integrated flyware to create an array of up to six CDL10P's
- Signal, -3 dB, Limiter Protection, and Clip Monitoring
- Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille - great for touring bands and mobile DJs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
The CDL10P’s Constant Directivity Design

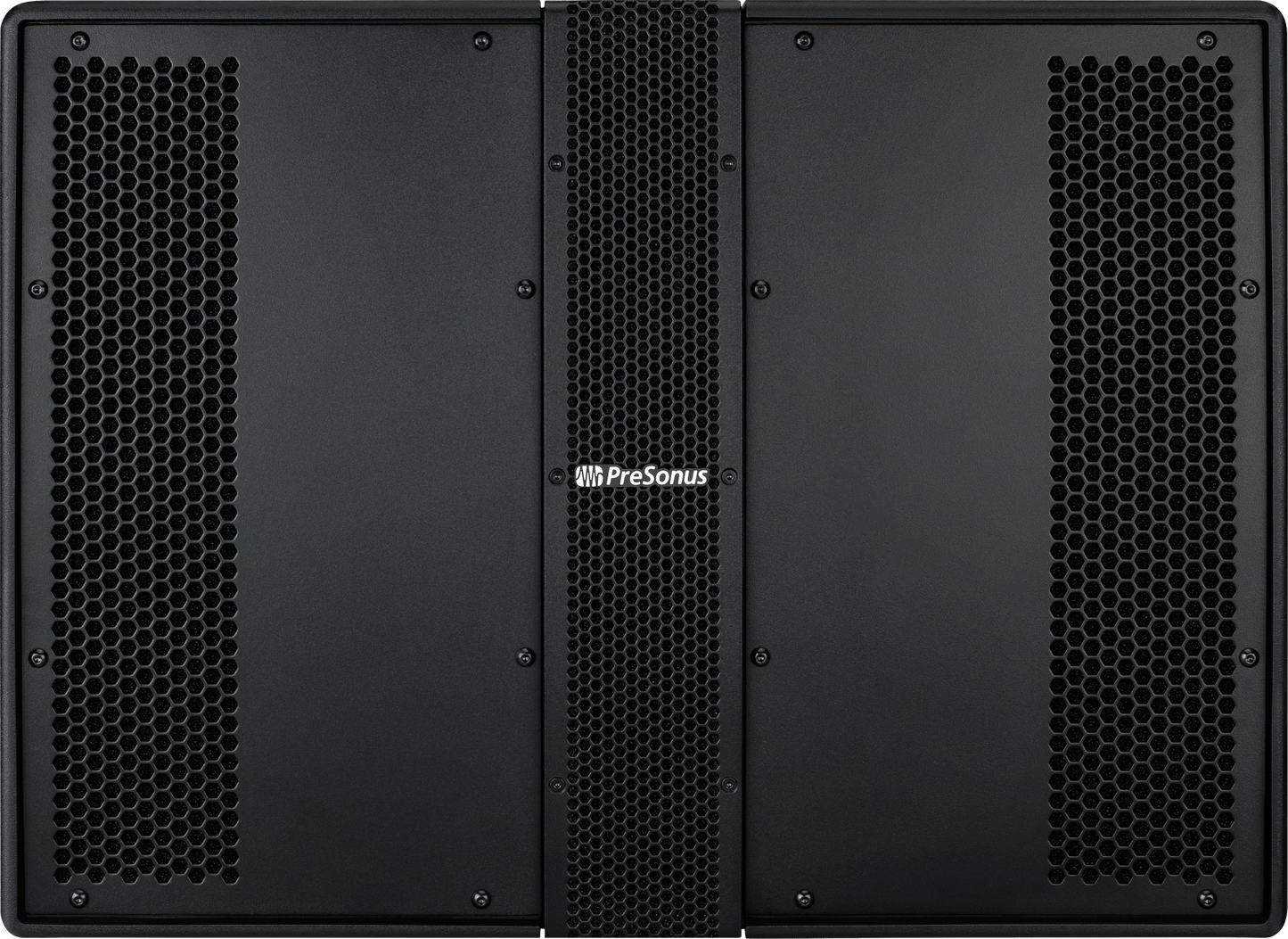

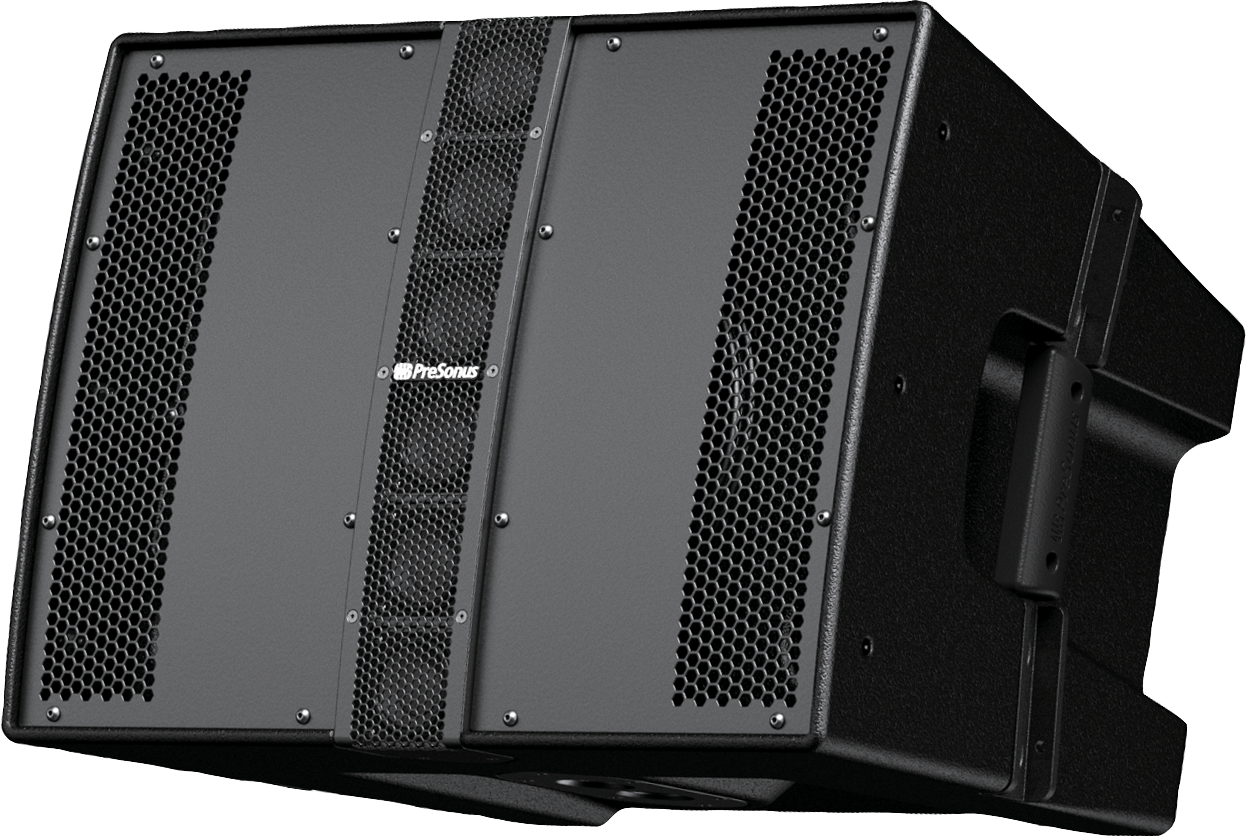

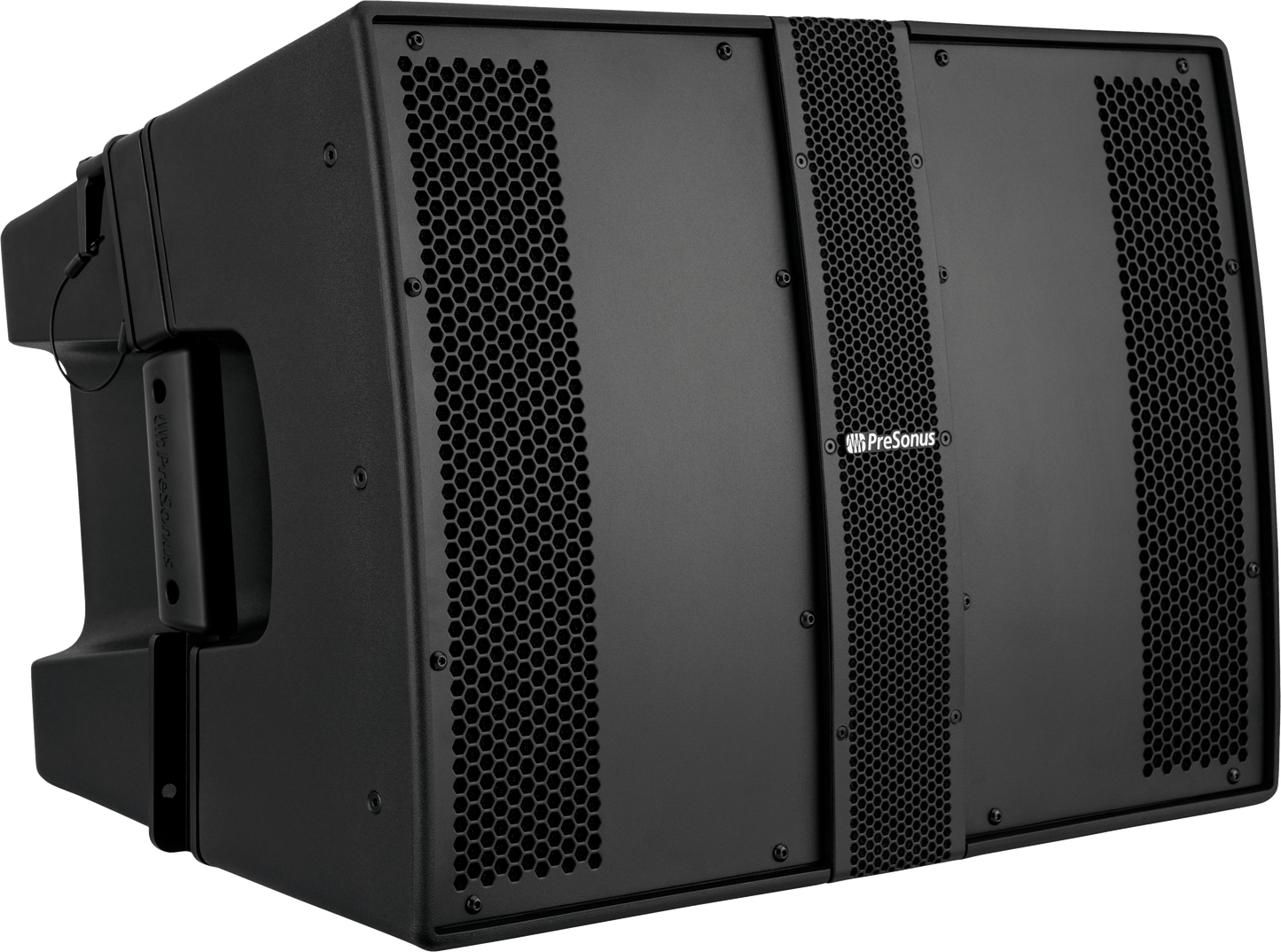

Each CDL10P consists of 6 2-inch drivers aligned in a segmented, circular-arc, HF array centered in front of a 10-inch woofer. The output of the LF driver travels from the same acoustic axis as the HF array so the pattern always radiates from the center. This avoids near-field anomalies and makes the CDL10P ideal for a broad range of venue sizes.
More About the CDL10P’s HF Driver Array
The 2-inch cones’ fast transient response is matched for high- and mid-range reproduction. This is enhanced by setting the internal crossover to 420 Hz, so the CDL10P reproduces audio seamlessly, with no gaps at the heart of the musical range. This also minimizes comb filtering between 10-inch bass drivers in an array for a smooth low-mid response.
CDL10P Power Amplification
Each 2-inch speaker in the high-frequency driver array has a 1-inch voice coil, and the entire array is driven by a 500W Class D amplifier. Because the power is shared across six voice coils, power compression is reduced, resulting in an efficient design and a flatter phase response for less fatiguing listening and a refined, balanced sound.
CDL-series Rigging Accessories

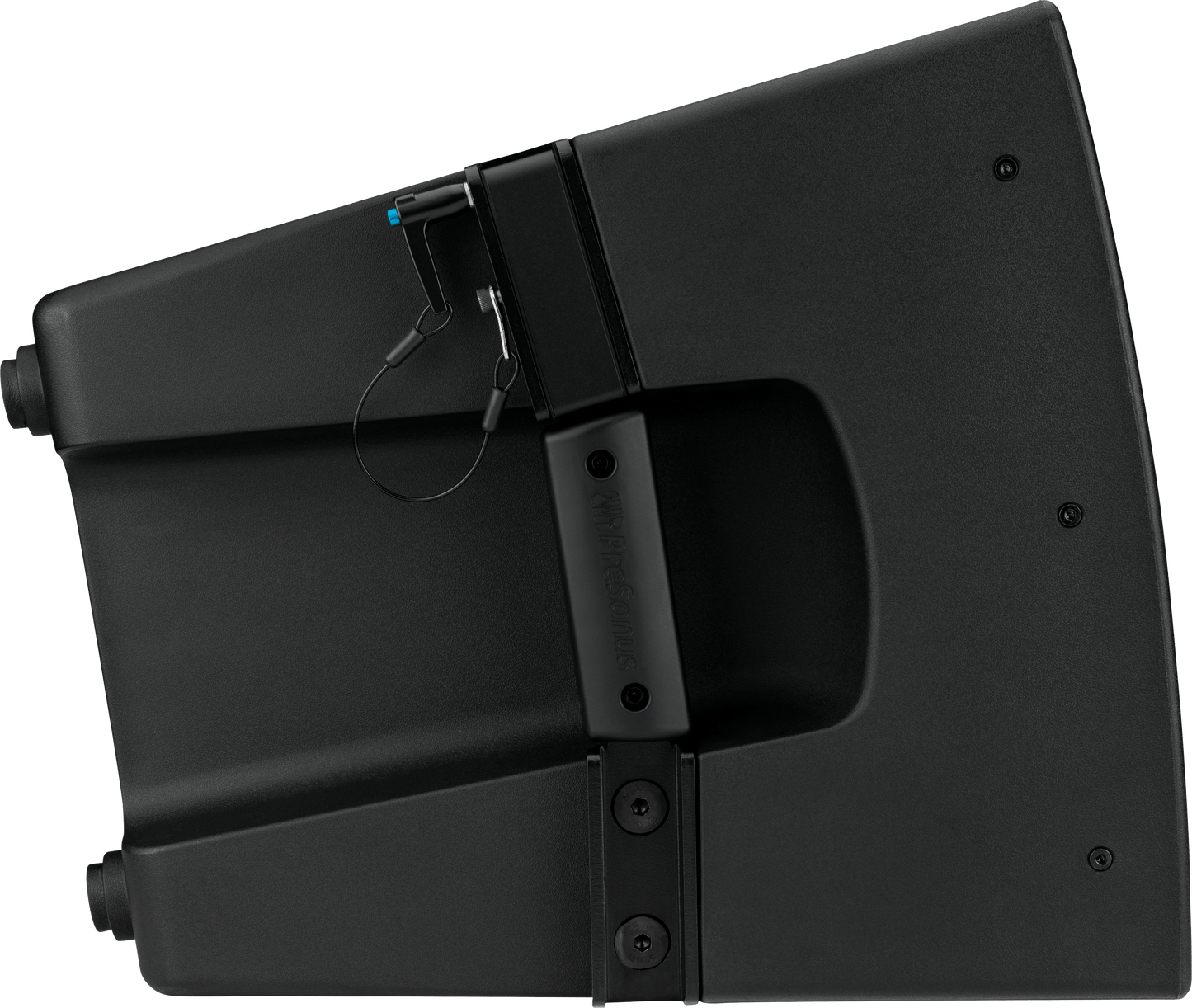

CDL loudspeakers and rigging hardware are rated for a 10:1 load. The CDL10P Rigging Grid is required for flown installations. The CDL Rigging Extension Bar provides tilt control. The CDL10P Rigging Sling is required with 4 or more CDL loudspeakers in a vertical array and when using the CDL Rigging Extension Bar with a tilt of 12˚ or greater.
PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Specs

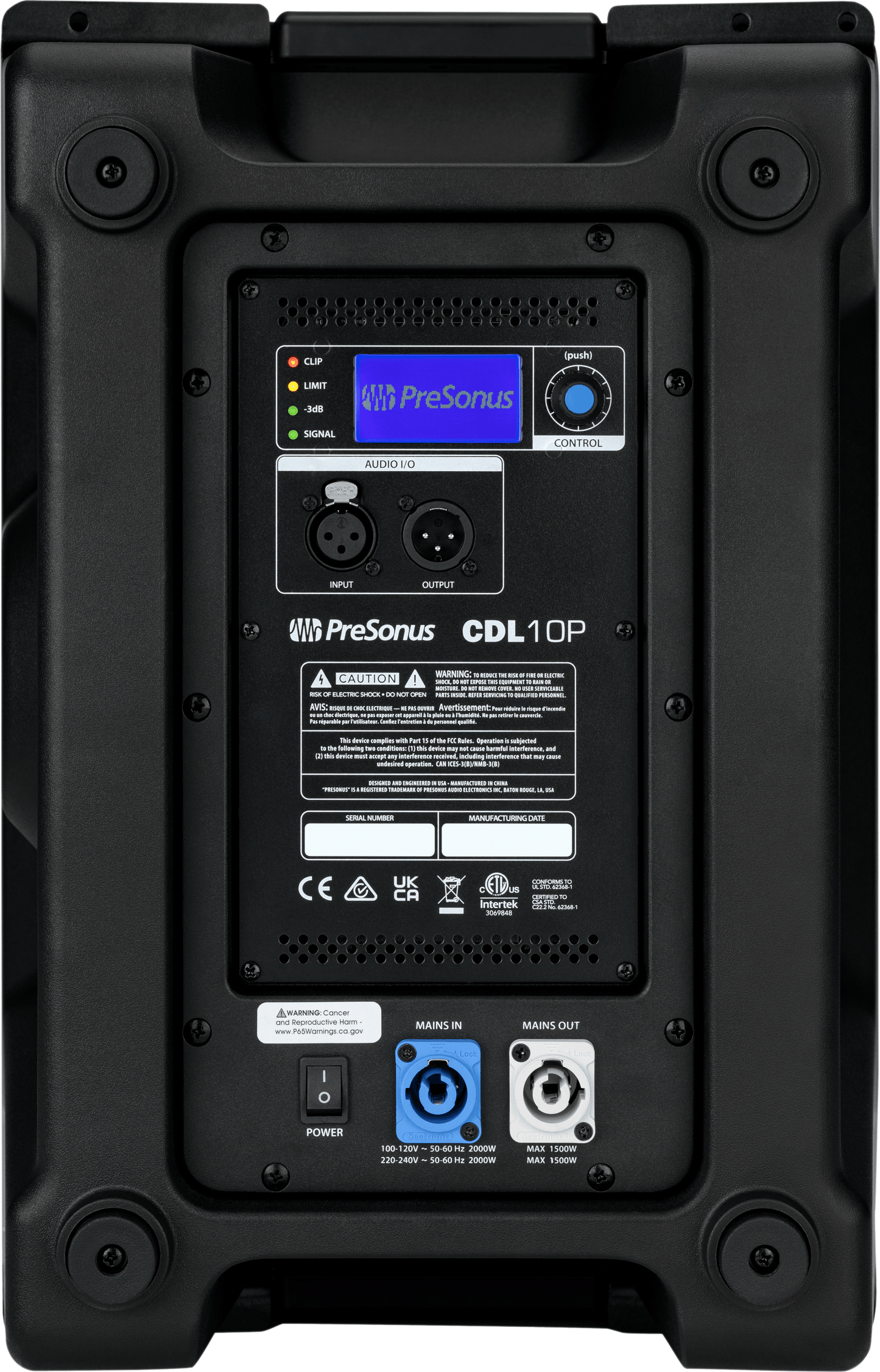

Electronics
Auxiliary Input
N/A
Channels
One
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
4.2A
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
CDL10P Constant Directivity Sound Reinforcement Loudspeaker, Black, EU
Series
CDL
Hardware
Audio Controls
Preset Select for number of arrayed boxes HPF On/Off PreSonus Subwoofer Configuration
Cabinet Material
Molded Plastic
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
1000W Peak, 500W Program (250W RMS)
Handle
2 Side
LF Power
1000W Peak, 500W Program (250W RMS)
LF Transducers
10” (2” Voice Coil)
Pole Socket
Dual Position (0˚, 7.5˚)
Measurements
Product Depth
16" (40.6 cm)
Product Height
14.3" (36.3 cm)
Product Width
19.6” (49.78 cm)
Miscellaneous
Commodity Code
8518220090
Power Cable

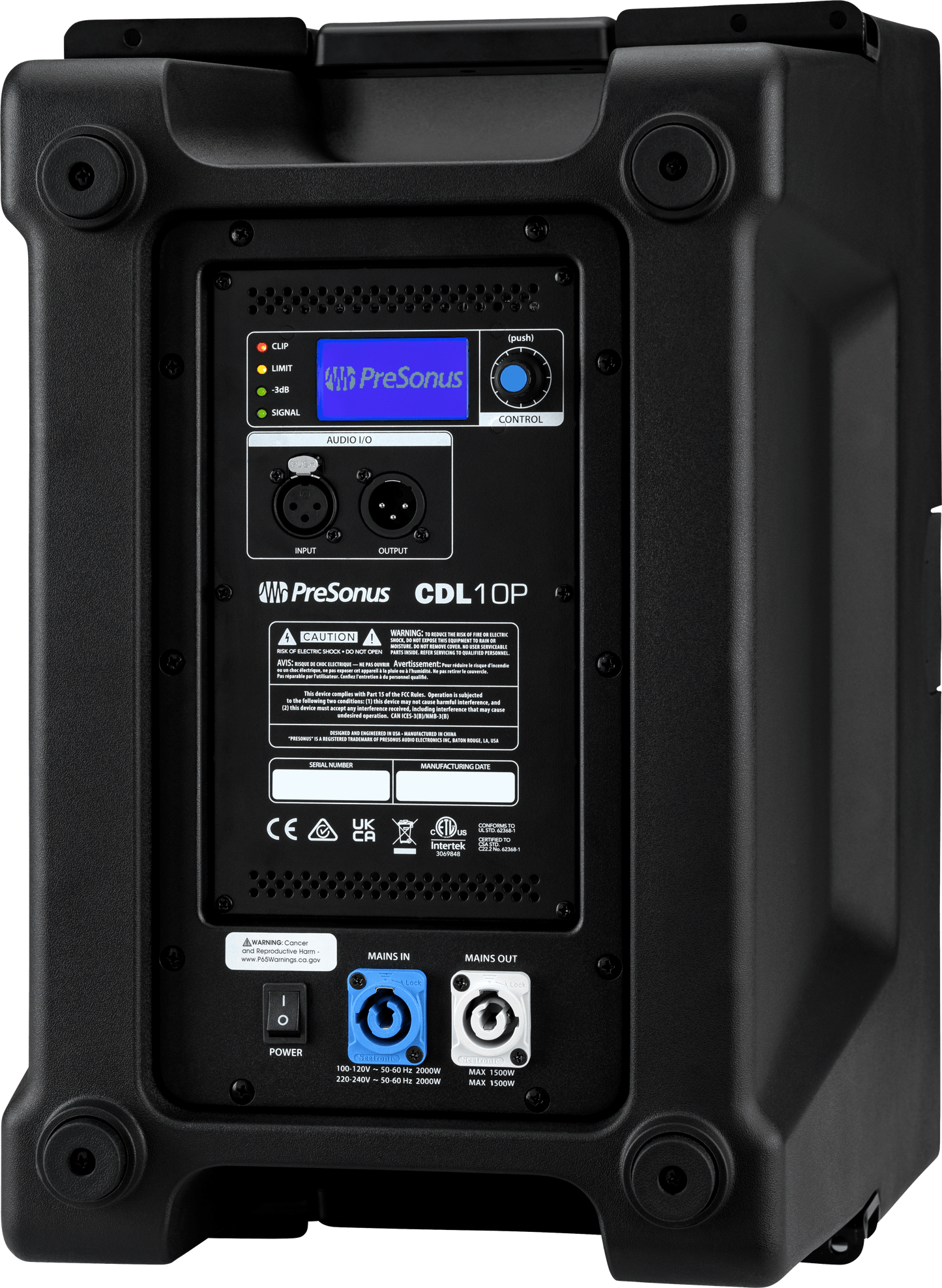

powerCON™ In and Out
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency,
Transducer: Limiter
Suspension
Integrated Rigging (10:1 Load)
Performance
Peak SPL
130 dB
Total Power Output
2000W Peak, 1000W Program (500W RMS)
Speakers
Coverage Pattern
120 degree (H) x 15 degree (V)
Crossover Frequency
420 Hz
Speaker Type
Powered 2-Way, Full-Range
Total Impedance
NA
