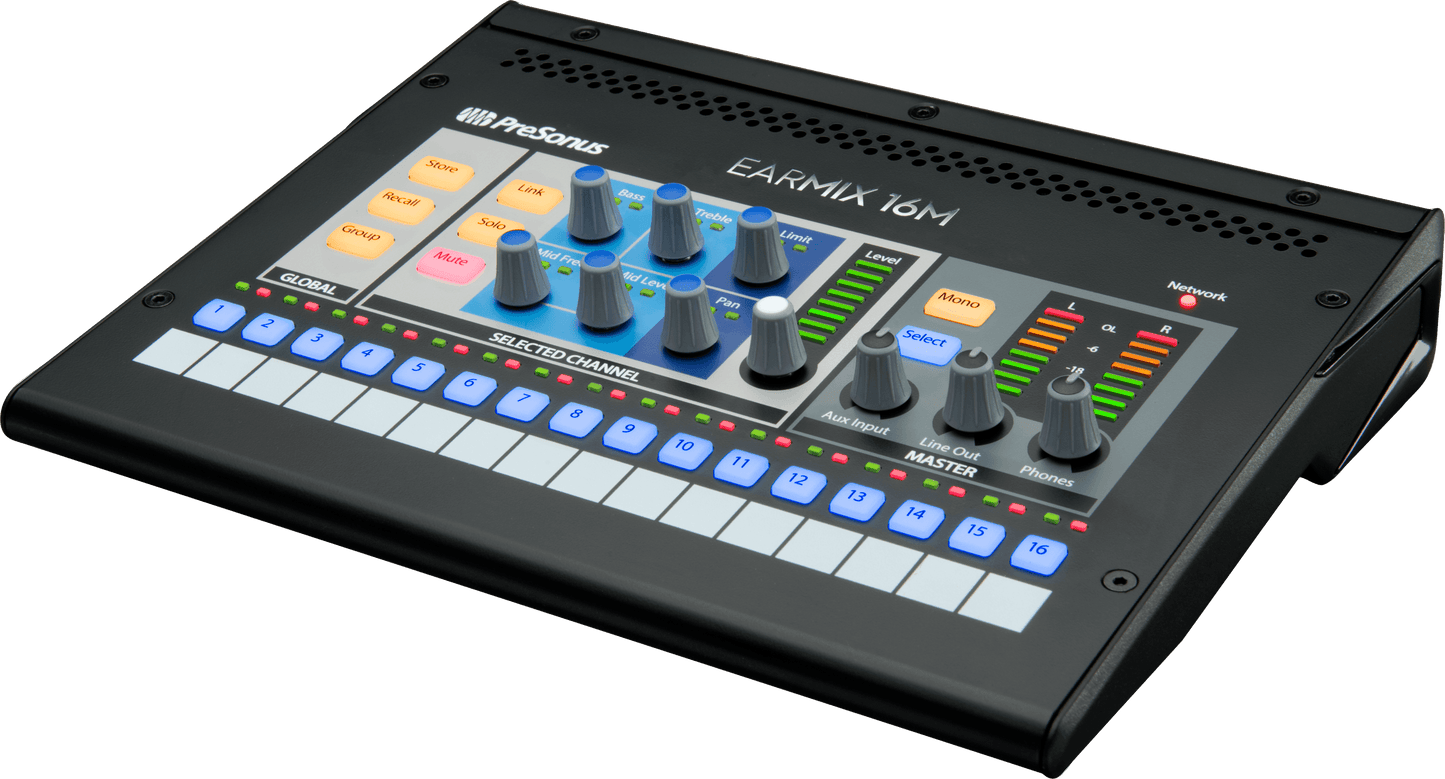

EarMix 16M Personal Monitor Mixer
EarMix 16M Personal Monitor Mixer
SKU: 2779300102
Regular price
£339.00
Regular price
£339.00
Sale price
£339.00
Unit price
per
Our loud and clear 16x2 AVB-networked personal monitor mixer with 3-band EQ and limiter on all channels and main mix.
Couldn't load pickup availability
EarMix 16M Personal Monitor Mixer
Regular price
£339.00
Regular price
£339.00
Sale price
£339.00
Unit price
per
Overview

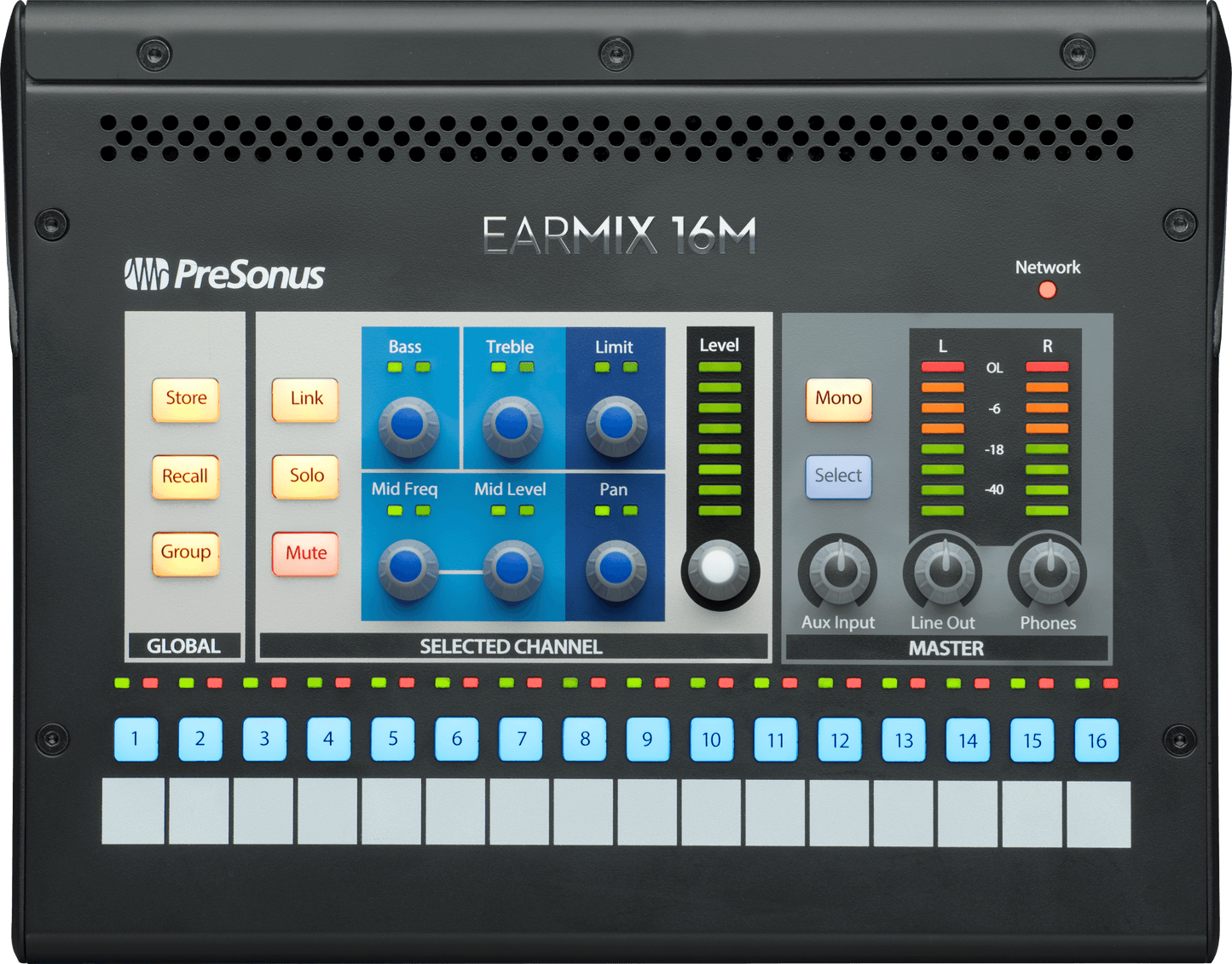

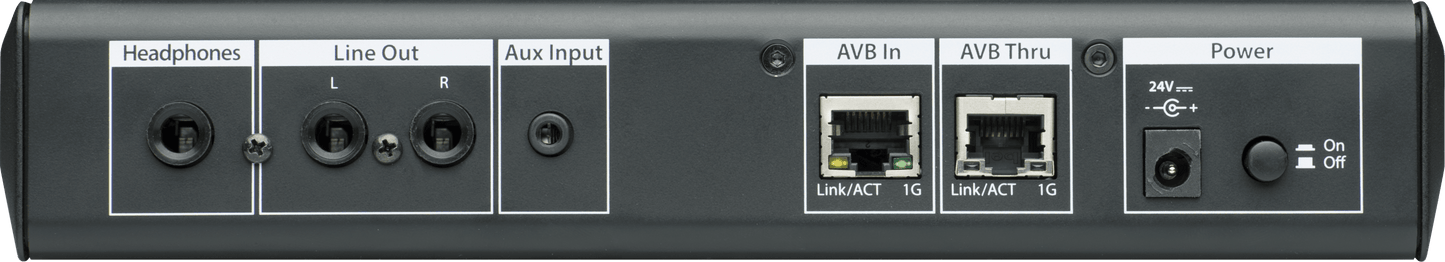

Designed to work seamlessly with PreSonus' StudioLive Series III family of mixers, yet compatible with other AVB-enabled systems, the PreSonus EarMix™ 16M personal monitor mixer accepts 16 mono channels of input via AVB networking. An aux input admits an external source to the local mix. You get stereo channel linking and channel grouping, along with three-band EQ and limiting for each channel and the main mix, balanced ¼-inch TRS L/R outputs, and a loud, clear headphone amplifier that can drive low impedance devices such as high quality in-ear-monitors. Two AVB jacks enable daisy chaining; network up to 24 units with a StudioLive Series III mixer. The EarMix 16M can be powered from the included external power supply or over Ethernet (PoE) from a compatible switch.
Overview
Features
- 16x2 AVB-networked personal monitor mixer
- Loud, clear headphone amp that can drive low-impedance in-ear monitors
- 3-band EQ and limiter on all channels and main mix
- Stereo channel linking and channel grouping
- Support for PoE power
- 2 AVB Ethernet ports; network up to 24 units with a StudioLive Series III mixer
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
PoE: Remote power for networked devices.
The EarMix 16M can be powered with its included external power supply or over the same Ethernet connection that’s used for AVB network audio. Thanks to Power over Ethernet (PoE), a single cable delivers both digital audio and electrical power. While compatible with any AVB switch that provides PoE, PreSonus’ SW5E five-port AVB switch enables you to connect multiple EarMix 16Ms to the AVB network and provides PoE.
A complete networked solution.
The StudioLive Series III ecosystem of networked products are at the forefront of AVB networking technology. Designed to complement each other, the ecosystem is easily expanded and quickly configured. The EarMix 16M adds simple personal monitoring that can be located anywhere on the network.
The ultimate monitoring system.
When combined with a StudioLive Series III rack mixer, the EarMix 16M becomes a complete personal monitoring solution that can be added to any mixing system. Simply connect the outputs of your installed mixer to the StudioLive, route audio via AVB to your EarMix, and you’ll have independent reverb, compression, and more to your monitoring system.
Specs
Electronics
Headphone Jack
1/4" Stereo
Voltage
24V DC
General
Color
Black
Product Name
EarMix 16M Personal Monitor Mixer, Black
Series
EarMix
Hardware
Digital Audio AVB Audio Network Ports
RJ-45
Measurements
Product Depth
7.6" (19.3cm)
Product Height
1.8" (4.57 cm)
Product Width
9.4" (23.8 cm)
Miscellaneous
Commodity Code
8517620000
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
150 mW /Channel at 60 Ω
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
Performance
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
