Eris® Studio 5 (Single)
Eris® Studio 5 (Single)
Couldn't load pickup availability
Overview
5.25-inch 2-Way Active Studio Monitors with EBM Waveguide
Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

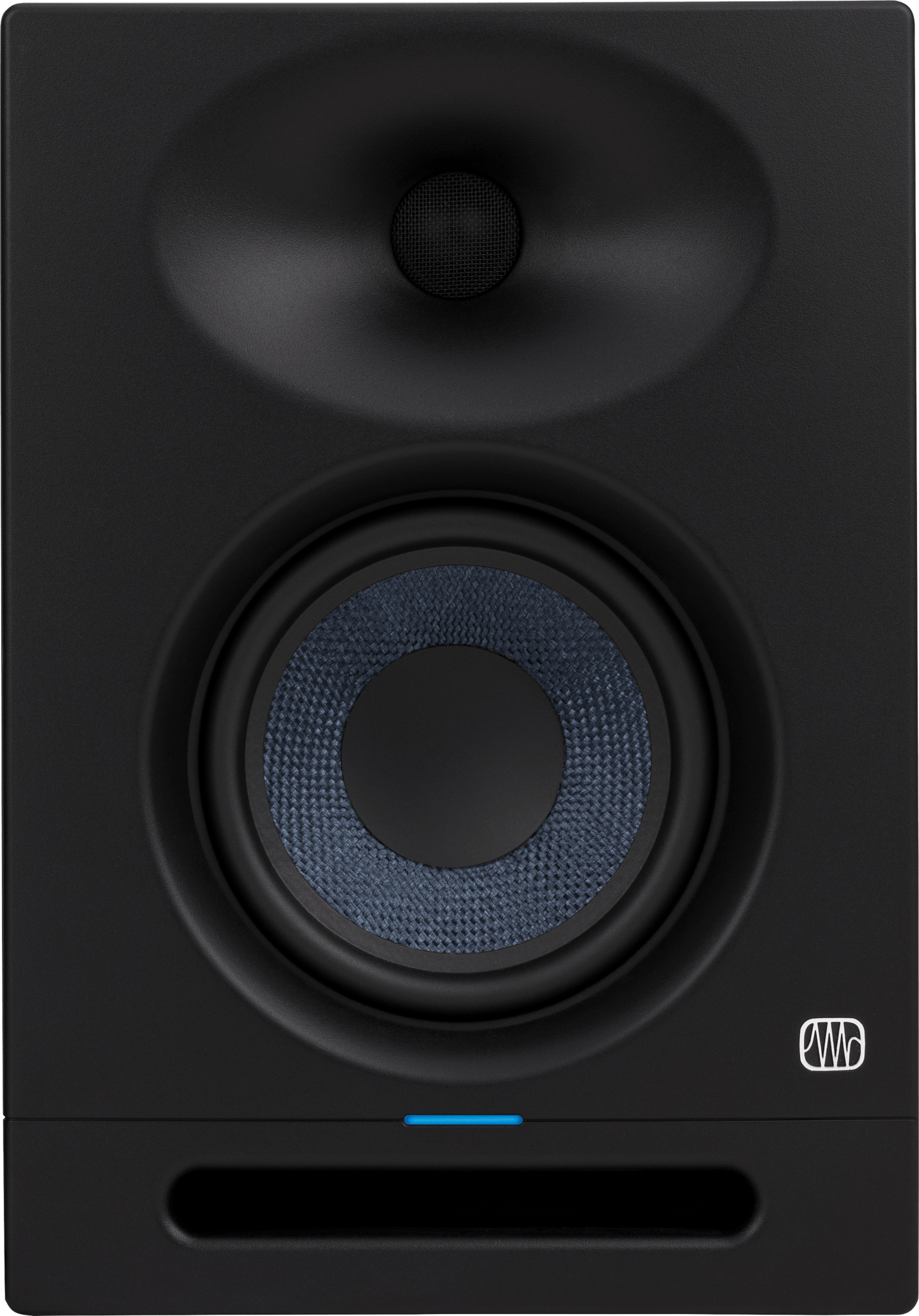

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.
The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer!
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.
Overview
Features
- 5.25-inch woven composite low-frequency driver
- 1-inch, ultra-low mass, silk-dome, high frequency driver
- Crossover Frequency 3.5 kHz
- 120˚ x 60˚ EBM waveguide provides a sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 80W, Class AB dual amplification
- 48 Hz to 20 kHz frequency response
- 102 dB Peak SPL (@ 1 meter)
- Acoustic Tuning Controls:
- Acoustic Space (Flat, -2 dB, -4 dB)
- High Frequency (±6 dB, center 10 kHz, continuously variable)
- Mid Frequency (±6 dB, center 1 kHz, continuously variable)
- Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

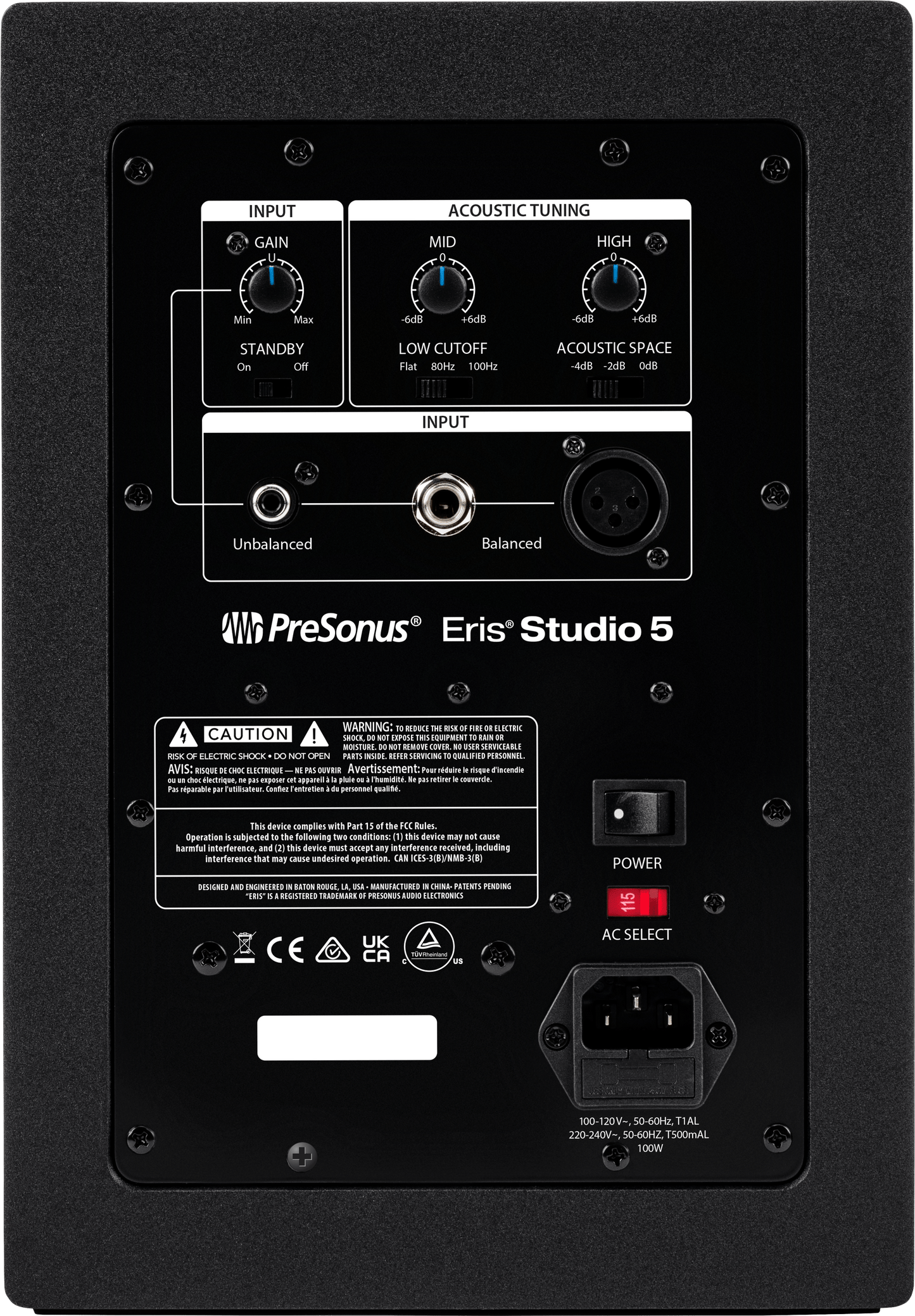

- Inputs:
- XLR and 1/4-inch TRS balanced rear-panel inputs
- RCA unbalanced rear-panel inputs
- Protection:
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- Power Saver mode (engages after 40 minutes)
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 5 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 5, Black, 220-240V UK
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
35 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
45 Watts
LF Transducers
5.25" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
8.78" (22.3 cm)
Product Height
11.5" (29.2 cm)
Product Width
8" (20.32 cm)
Miscellaneous
Commodity Code
8518100090
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
102 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
3.5 kHz
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 5, Black, 220-240V EU
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
35 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
45 Watts
LF Transducers
5.25" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
8.78" (22.3 cm)
Product Height
11.5" (29.2 cm)
Product Width
8" (20.32 cm)
Miscellaneous
Commodity Code
8518100090
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
102 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
3.5 kHz
Compare
Compare
Looking for the perfect studio monitor? PreSonus has options for all room sizes and budgets.
|
Eris® Studio 4 (Single)
£95.00
|
Eris® Studio 5 (Single)
£129.00
|
Eris® Studio 8 (Single)
£199.00
|
|---|---|---|---|
| HF Transducers | 1” Ultra Low Mass, Silk Dome Tweeter | 1” Ultra Low Mass, Silk Dome Tweeter | 1.25” Ultra Low Mass, Silk Dome Tweeter |
| LF Transducers | 4.5" Woven Glass Fiber Composite | 5.25" Woven Glass Fiber Composite | 8" Woven Glass Fiber Composite |
| Monitor Inputs | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA |
| Peak SPL | 99 dB (@ 1 meter) | 102 dB (@ 1 meter) | 106 dB (at 1 Meter) |
| Crossover Frequency | 2.7 kHz | 3.5 kHz 3.5 kHz | 3.5 kHz |
| Power Amplifier Type | Class AB | Class AB | Class AB |
| Product Height | 10" (25.4 cm) | 11.5" (29.2 cm) | 16.5" (41.91 cm) |
| Product Width | 7" (17.8 cm) | 8" (20.32 cm) | 9.84" (25 cm) |
| HF Transducers | |||
| 1” Ultra Low Mass, Silk Dome Tweeter | 1” Ultra Low Mass, Silk Dome Tweeter | 1.25” Ultra Low Mass, Silk Dome Tweeter | |
| LF Transducers | |||
| 4.5" Woven Glass Fiber Composite | 5.25" Woven Glass Fiber Composite | 8" Woven Glass Fiber Composite | |
| Monitor Inputs | |||
| 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | |
| Peak SPL | |||
| 99 dB (@ 1 meter) | 102 dB (@ 1 meter) | 106 dB (at 1 Meter) | |
| Crossover Frequency | |||
| 2.7 kHz | 3.5 kHz | 3.5 kHz | |
| Power Amplifier Type | |||
| Class AB | Class AB | Class AB | |
| Product Height | |||
| 10" (25.4 cm) | 11.5" (29.2 cm) | 16.5" (41.91 cm) | |
| Product Width | |||
| 7" (17.8 cm) | 8" (20.32 cm) | 9.84" (25 cm) | |
