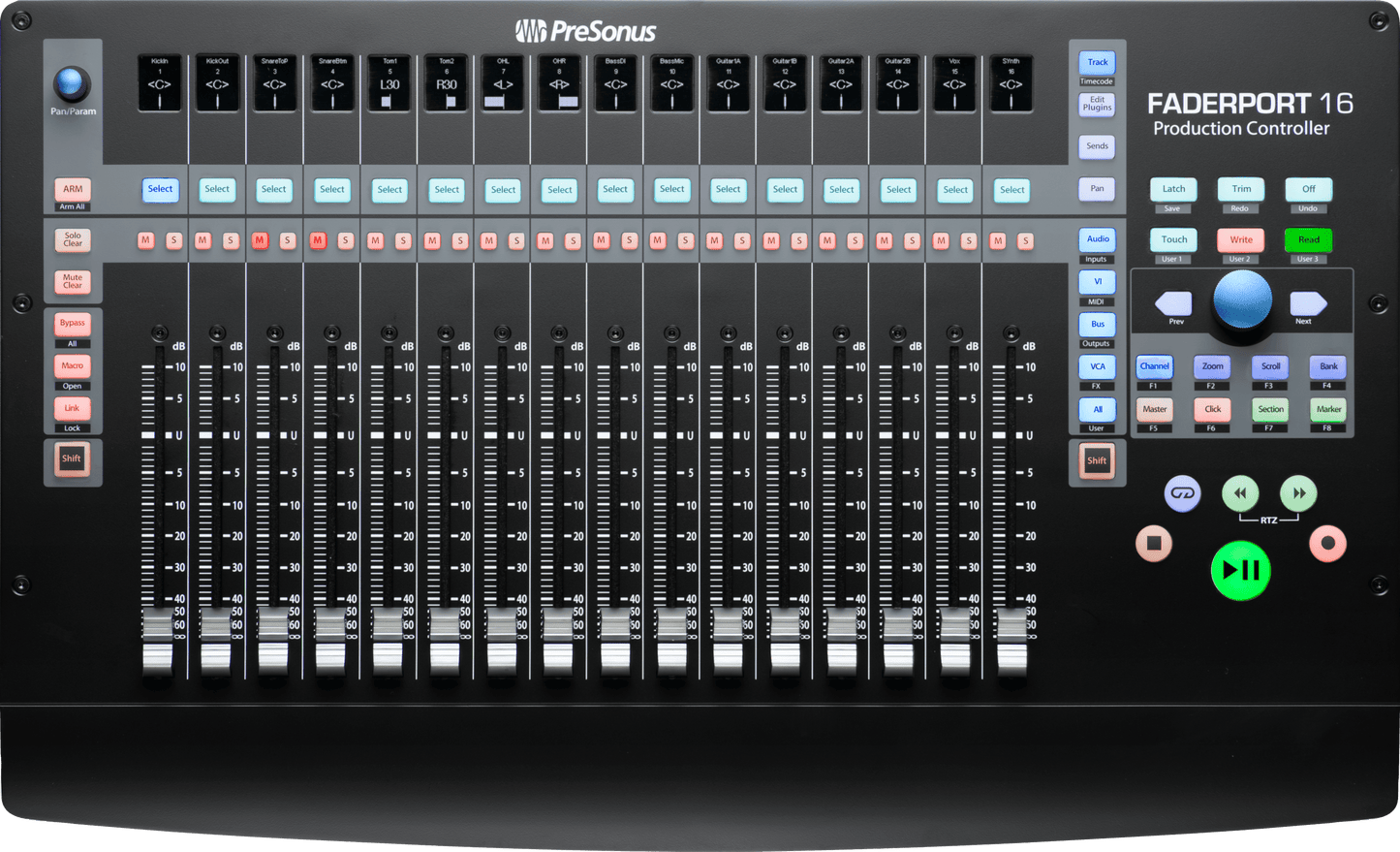

FaderPort® 16 DAW Controller
FaderPort® 16 DAW Controller
SKU:
2777104201
Regular price
£829.00
Regular price
£829.00
£829.00
Sale price
Unit price
per
inc. VAT*
Our 16-channel mix production controller.
Couldn't load pickup availability
Overview
A superior solution for anyone who mixes in the box, only the FaderPort 16 provides 16 100 mm touch-sensitive, motorized faders in a compact chassis that easily sits on any desk. Like PreSonus®' popular FaderPort 8, the FaderPort 16 features digital scribble strip displays; mute and solo for every channel; complete automation and transport control; plus level, pan, send, and plug-in control modes for every fader. The unique Session Navigator makes mixing and controlling your favorite DAW application quick and easy by putting eight critical functions under your fingers, including navigation, zoom, and master fader control. The FaderPort 16 is compatible with virtually any DAW host for Mac® or Windows®, with support for HUI and Mackie Control, including customized Mackie Control modes for Logic, Cubase, and Sonar. Its native Fender Studio Pro support provides even more functionality with PreSonus' easy-to-use DAW, including Control Link support as well as parameter follow, allowing you quick access to any control under your mouse. Its ergonomic design makes it a comfortable companion to your keyboard and mouse.
Overview
Features
- 16 touch-sensitive, 100 mm long-throw, motorized faders
- 16 Scribble Strip displays
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop, Drop Marker Next / Prev Marker Next / Prev Event
- General session controls: Undo / Redo, All Arm, Solo / Mute Clear, Track Management, Click On / Off with tap tempo
- Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
- Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
- Channel controls: Level, Pan, Solo, Mute, Rec Arm
- Automation controls: Touch, Latch, Trim, Write, Read, Off
- Optional Fader functionality: plug-in edit, bus sends, pan
- macOS® / Windows® compatible with native Fender Studio Pro support and HUI and Mackie Control Universal emulation
- Footswitch input for hands-free start / stop
- USB 2.0 connectivity
- Ableton® Live Official Integration (version 10.1.5 and later)
- Professional Recording Software Included - Fender Studio Pro License
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v4.3.3.100963 (Windows)
- Universal Control v4.3.3.100963 (Mac)
- Universal Control 2.5 (Windows)
- Universal Control 2.5 (Mac)
- Universal Control 2.5.1 (Mac)
- Universal Control 2.5.1 (Windows)
- Universal Control 2.5.2 (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro DAW Software Included.
Your hardware registration includes a perpetual License to Fender Studio Pro.
Ableton Live integration.
While compatible with most third-party software, FaderPort offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views — the FaderPort will help you work faster than ever.
Specs
Footswitch
Optional 1-Button Footswitch for Hands-Free Start/Stop
Connectivity
USB 2.0
Voltage
220-240V EU
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Black
Product Name
FaderPort® 16 Production Controller, Black, 220-240V EU
Series
FaderPort®
Audio Controls
General Controls - Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins, Channel Controls - Level, Pan, Solo, Mute, Select, Rec Arm, Automation Controls - Touch, Latch, Trim, Write, Read, Off, Optional Fader Functionality - Plug-in Edit, Bus Sends, Pan, Window View - Mix, Project, Transport, Undo, Transport - Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.), Navigation - Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge, Console Management - Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All, Displays - 16 digital scribble strip displays, time code display, channel meters
Audio Switches
16 - 100 mm long-throw, touch-sensitive, motorized faders, Dual-servo motorized drive belt system for fast and quiet operation, Ultra-smooth feel and lightning fast, Heavy-duty construction, Resolution: 10-bit, 1,024 steps
Product Depth
11.9” (30.23 cm)
Product Height
2.11” (5.36 cm)
Product Height/Length
2.11” (5.36 cm)
Product Weight
8 lb. (3.63 kg)
Product Width
19.6” (49.78 cm)
Power Cable
12 VDC, 2A External Power Supply (Factory Configured, Included)
Specs
Footswitch
Optional 1-Button Footswitch for Hands-Free Start/Stop
Connectivity
USB 2.0
Voltage
220-240V UK
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Black
Product Name
FaderPort® 16 Production Controller, Black, 220-240 UK
Series
FaderPort®
Audio Controls
General Controls - Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins, Channel Controls - Level, Pan, Solo, Mute, Select, Rec Arm, Automation Controls - Touch, Latch, Trim, Write, Read, Off, Optional Fader Functionality - Plug-in Edit, Bus Sends, Pan, Window View - Mix, Project, Transport, Undo, Transport - Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.), Navigation - Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge, Console Management - Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All, Displays - 16 digital scribble strip displays, time code display, channel meters
Audio Switches
16 - 100 mm long-throw, touch-sensitive, motorized faders, Dual-servo motorized drive belt system for fast and quiet operation, Ultra-smooth feel and lightning fast, Heavy-duty construction, Resolution: 10-bit, 1,024 steps
Product Depth
11.9” (30.23 cm)
Product Height
2.11” (5.36 cm)
Product Height/Length
2.11” (5.36 cm)
Product Weight
8 lb. (3.63 kg)
Product Width
19.6” (49.78 cm)
Power Cable
12 VDC, 2A External Power Supply (Factory Configured, Included)
