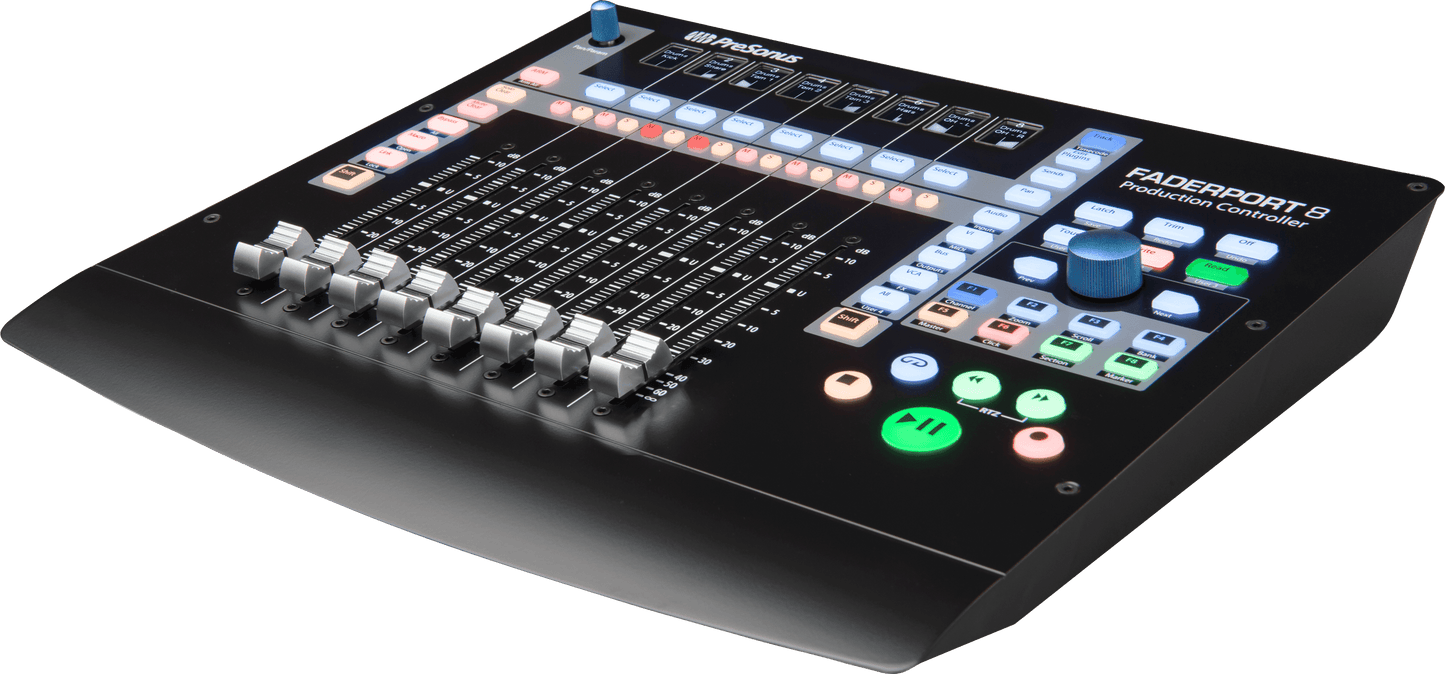

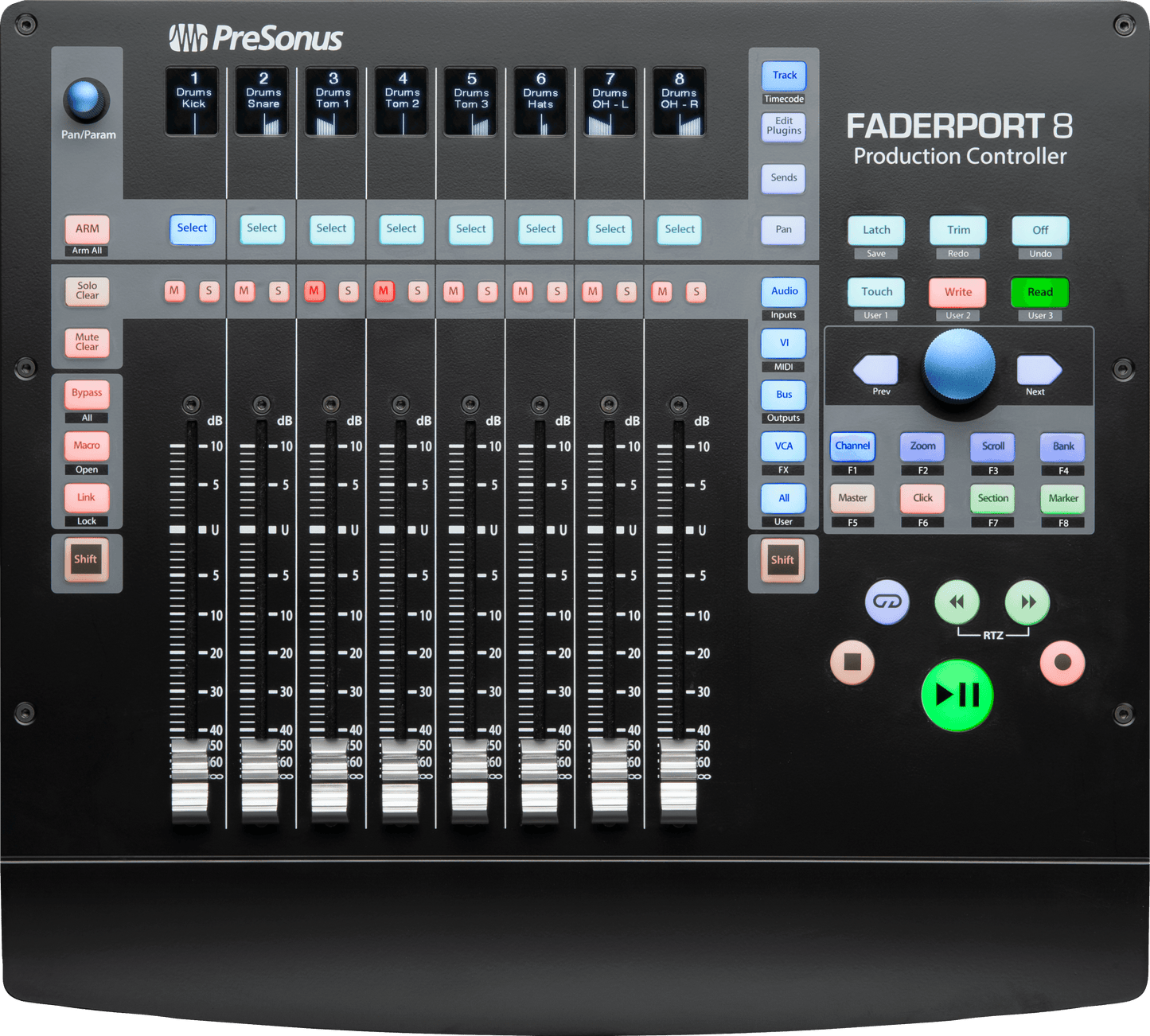

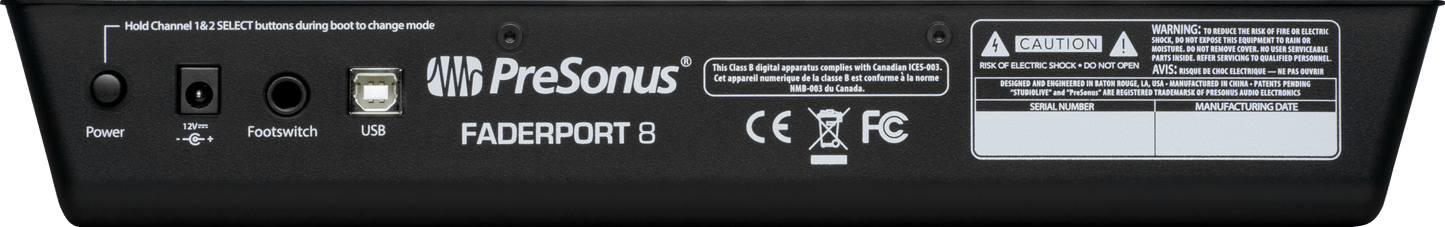

FaderPort® 8 DAW Controller
FaderPort® 8 DAW Controller
SKU:
2777104202
Regular price
£459.00
Regular price
£459.00
£459.00
Sale price
Unit price
per
inc. VAT*
Our 8-channel USB automation and transport controller.
Couldn't load pickup availability
Overview
FaderPort® 8 provides precise tactile control over mix and automation functions. With eight touch-sensitive, motorized, 100 mm faders and 65 buttons covering 78 different functions, you can quickly zoom in to edit audio, adjust your tempo with a simple tap, edit plug-ins, and control track levels.
Designed to work seamlessly with your mouse and keyboard, the FaderPort 8 follows your mouse selection, so the track you want to control is always under your fingertips. Illuminated buttons make it easy to find the function you need. Eight digital scribble strips provide visual feedback. With the FaderPort 8, you'll enjoy the fastest, most efficient workflow you've ever experienced.
The FaderPort 8's unique Session Navigator provides easy access to mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline or work measure by measure; zoom in and out on the timeline; adjust track size; navigate and drop markers; even maintain constant control of your main level. Once you start using the Session Navigator, you'll wonder how you mixed without it.
Customized modes provide deep integration with both Fender Studio Pro and Ableton Live. Support for both Mackie Control and HUI protocols also makes it fast and easy to control Logic Pro X, Cubase, Pro Tools, and more. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix.
Overview
Features
- 8 touch-sensitive, 100 mm long-throw, motorized faders
- 8 Scribble Strip displays
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop, Drop Marker Next / Prev Marker Next / Prev Event
- General session controls: Undo / Redo, All Arm, Solo / Mute Clear, Track Management, Click On / Off with tap tempo
- Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
- Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
- Channel controls: Level, Pan, Solo, Mute, Rec Arm
- Automation controls: Touch, Latch, Trim, Write, Read, Off
- Optional Fader functionality: plug-in edit, bus sends, pan
- macOS® / Windows® compatible with native Fender Studio Pro support and HUI and Mackie Control Universal emulation
- Footswitch input for hands-free start / stop
- USB 2.0 connectivity
- Ableton® Live Official Integration (version 10.1.5 and later)
- Professional Recording Software Included - Fender Studio Pro License
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v4.3.3.100963 (Windows)
- Universal Control v4.3.3.100963 (Mac)
- Universal Control 1.8.3.40882 (Mac)
- Universal Control 1.8.3.40882 (Windows)
- Universal Control 2.0 (Mac)
- Universal Control 2.0 (Windows)
- Universal Control 2.0.1 (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro DAW Software Included.
Your hardware registration includes a perpetual License to Fender Studio Pro.
Ableton Live integration.
While compatible with most third-party software, FaderPort offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views — the FaderPort will help you work faster than ever.
Specs
Footswitch
Optional 1-Button Footswitch for Hands-Free Start/Stop
Connectivity
USB 2.0
Voltage
220-240V UK
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Black
Product Name
FaderPort® 8 Production Controller, Black, 220-240 UK
Series
FaderPort®
Audio Controls
General Controls - Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins, Channel Controls - Level, Pan, Solo, Mute, Select, Rec Arm, Automation Controls - Touch, Latch, Trim, Write, Read, Off, Optional Fader Functionality - Plug-in Edit, Bus Sends, Pan, Window View - Mix, Project, Transport, Undo, Transport - Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.), Navigation - Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Nudge, Console Management - Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All, Displays - 8 digital scribble strip displays, timecode display, channel meters
Audio Faders
8 100 mm Long-Throw, Touch-Sensitive, Motorized Faders Dual-Servo Motorized Drive Belt System for Fast and Quiet Operation Ultra-Smooth Feel and Lightning Fast Heavy-Duty Construction Resolution: 10-bit, 1,024 Steps
Audio Switches
8 100 mm long-throw, touch-sensitive, motorized faders, Dual-servo motorized drive belt system for fast and quiet operation, Ultra-smooth feel and lightning fast, Heavy-duty construction, Resolution: 10-bit, 1,024 steps
Product Depth
11.8" (300 mm)
Product Height
2.25" (57 mm)
Product Height/Length
2.25" (57 mm)
Product Weight
5 lbs. (2.27 kg)
Product Width
13.15" (334 mm)
Specs
Footswitch
Optional 1-Button Footswitch for Hands-Free Start/Stop
Connectivity
USB 2.0
Voltage
220-240V EU
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Black
Product Name
FaderPort® 8 Production Controller, Black, 220-240V EU
Series
FaderPort®
Audio Controls
General Controls - Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins, Channel Controls - Level, Pan, Solo, Mute, Select, Rec Arm, Automation Controls - Touch, Latch, Trim, Write, Read, Off, Optional Fader Functionality - Plug-in Edit, Bus Sends, Pan, Window View - Mix, Project, Transport, Undo, Transport - Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.), Navigation - Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Nudge, Console Management - Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All, Displays - 8 digital scribble strip displays, timecode display, channel meters
Audio Faders
8 100 mm Long-Throw, Touch-Sensitive, Motorized Faders Dual-Servo Motorized Drive Belt System for Fast and Quiet Operation Ultra-Smooth Feel and Lightning Fast Heavy-Duty Construction Resolution: 10-bit, 1,024 Steps
Audio Switches
8 100 mm long-throw, touch-sensitive, motorized faders, Dual-servo motorized drive belt system for fast and quiet operation, Ultra-smooth feel and lightning fast, Heavy-duty construction, Resolution: 10-bit, 1,024 steps
Product Depth
11.8" (300 mm)
Product Height
2.25" (57 mm)
Product Height/Length
2.25" (57 mm)
Product Weight
5 lbs. (2.27 kg)
Product Width
13.15" (334 mm)
