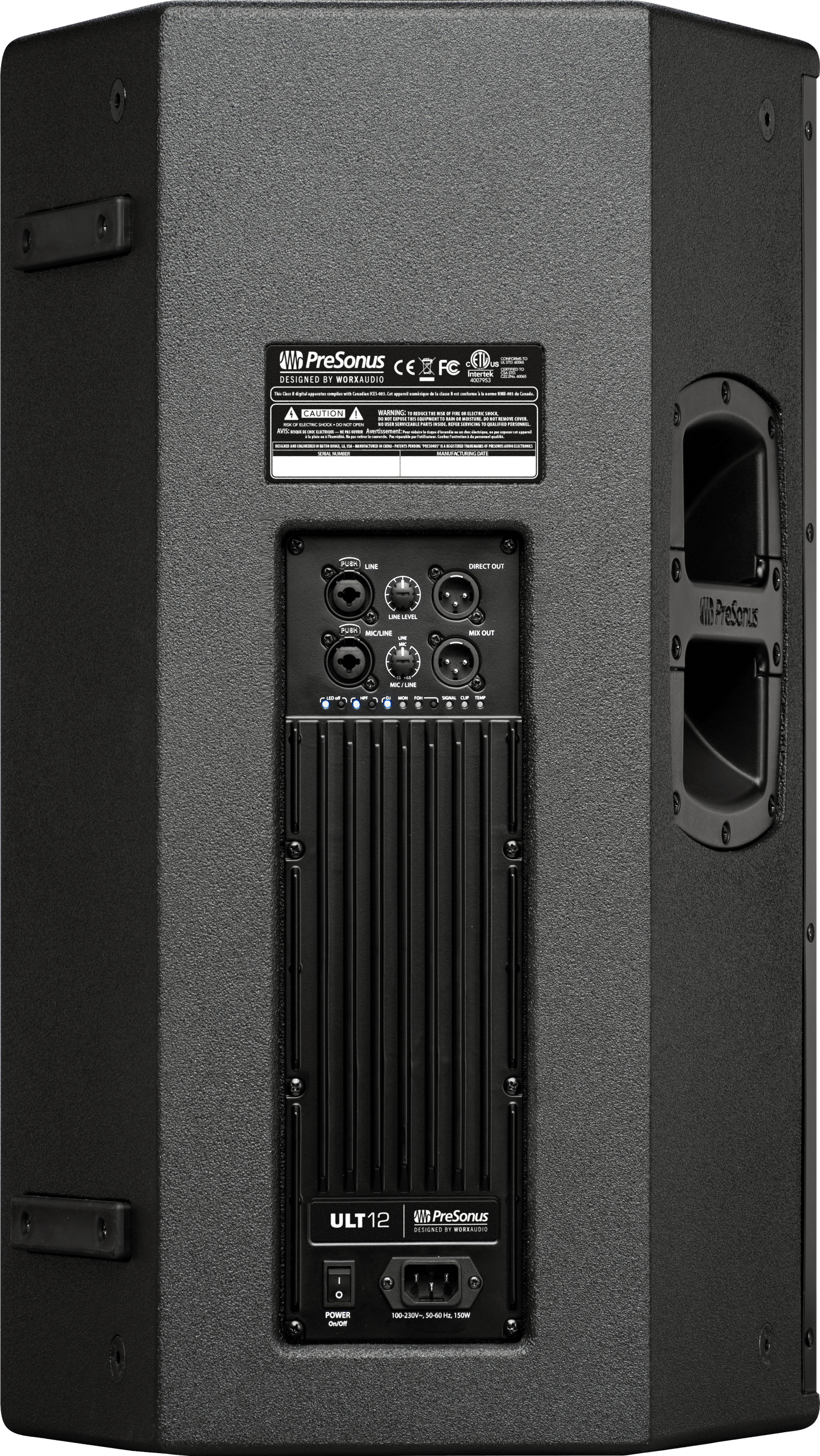

ULT12 2-way Active Sound-Reinforcement Loudspeaker
ULT12 2-way Active Sound-Reinforcement Loudspeaker
Couldn't load pickup availability
Overview
PreSonus® ULT12 active loudspeakers combine the widest horizontal dispersion of any loudspeaker in their class (110°) with a focused vertical dispersion (50°) for an ultra-long throw. The result is even coverage throughout the space, enabling the audience to hear clearly wherever they are. Featuring a custom 12-inch low-frequency driver, PreSonus' rotatable Pivot X110 horn, and 1,300W (peak) of Class D power in a lightweight design, ULT full-range loudspeakers deliver first-rate speech intelligibility and natural music reproduction for mobile use and permanent installations.
Overview
Features
- 12-inch custom low-frequency driver with 2.5-inch voice coil
- WorxAudio®-designed, rotatable, waveguide Pivot X110 horn for precise coverage
- Ultra-wide 110˚ horizontal dispersion and tight 50˚ vertical dispersion for longer throw
- 1,300W of Class D power
- XMAX preamp
- Onboard mixer with two combo XLR and ¼" inputs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Electronics
Auxiliary Input
N/A
Channels
Two
Inputs
Two - 1 Mic/Line, 1 Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
ULT12 2-way Active Sound-Reinforcement Loudspeaker, Black, 220-240V EU
Series
ULT
Hardware
Audio Controls
Mic/Line Level Line/Level Preset Select HPF On/Off Front LED On/Off
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
300W Peak (150W RMS)
HF Transducers
1.75" Titanium Diaphragm Compression Driver
Handle
2 Side
LF Power
1000W Peak (500W RMS)
LF Transducers
1x12" Ferrite (2.5" Voice Coil)
Pole Socket
35 mm, 2-Position
Inputs
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Microphone Preamp Input Impedance
1 kΩ
Measurements
Loudspeaker Monitor Angle
30 degree
Product Depth
13.9" (353 mm)
Product Height
25.25" (641 mm)
Product Width
14" (356 mm)
Miscellaneous
Commodity Code
8518220090
DSP Features
Presets: FOH, MON, DJ
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Supported Sample Rates
96 kHz
Suspension
M10 Suspension Points
Performance
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24-bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1300W Peak (650 RMS)
Speakers
Coverage Pattern
110 degree (H) x 50 degree (V)
Crossover Frequency
1.6 kHz
Speaker Type
2-Way Biamped
Total Impedance
NA
